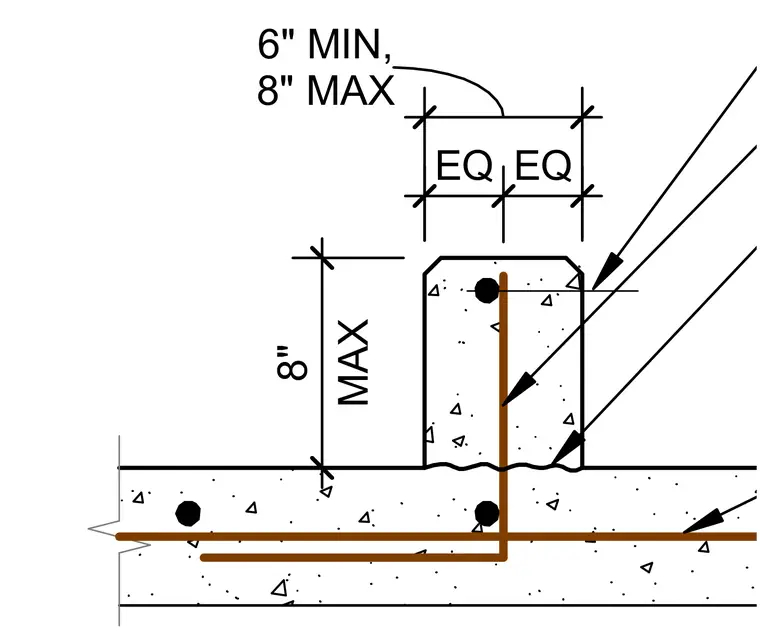

An on-grade concrete curb section sits atop a concrete slab with equal spacing configurations. Vertical and horizontal reinforcing bars anchor the curb into the slab base. Dimensioning calls for a maximum height of eight inches, with minimum six-inch and maximum eight-inch horizontal spacing.
