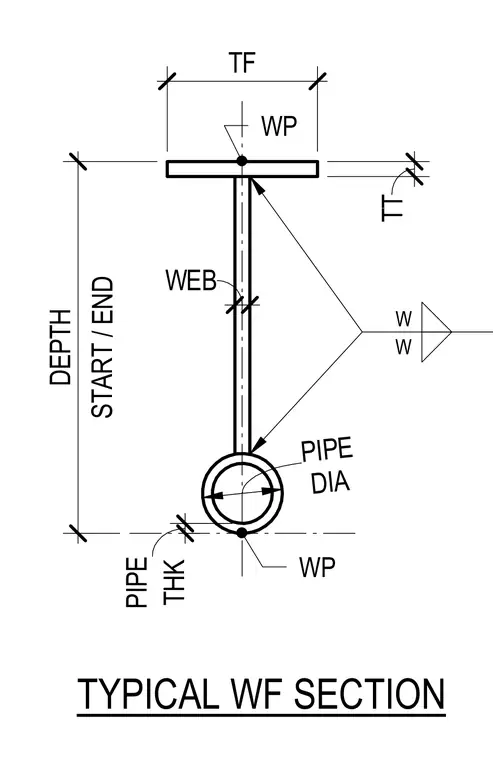

A structural wide flange section connects to a circular pipe member via fillet welds on both sides of the web. Dimensional callouts indicate the top flange width, top flange thickness, overall depth, pipe diameter, and pipe thickness. Work points define the geometric centerlines of the assembly.
