Structural · S-BQJKQ

Column Splice and Deck Closure Connection Detail

Elements

Connections

About this detail

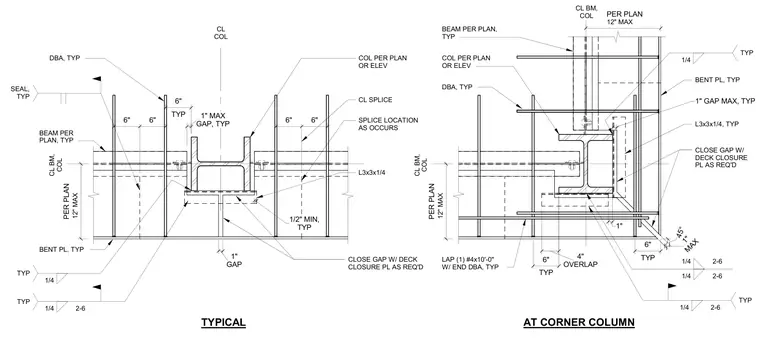

Column splices, bent plates, and deck closure plate connections for both typical conditions and corner columns. The assembly features an L3x3x1/4 angle welded with a quarter-inch fillet weld, a one-inch maximum gap, and deck closure plates as required to close gaps around columns and beams per plan. Reinforcing bars including number four bars at ten feet long with end dowel bar anchors are detailed with standard overlaps and clearances. Sealants are applied typically as noted, with splice locations occurring along column centerlines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
