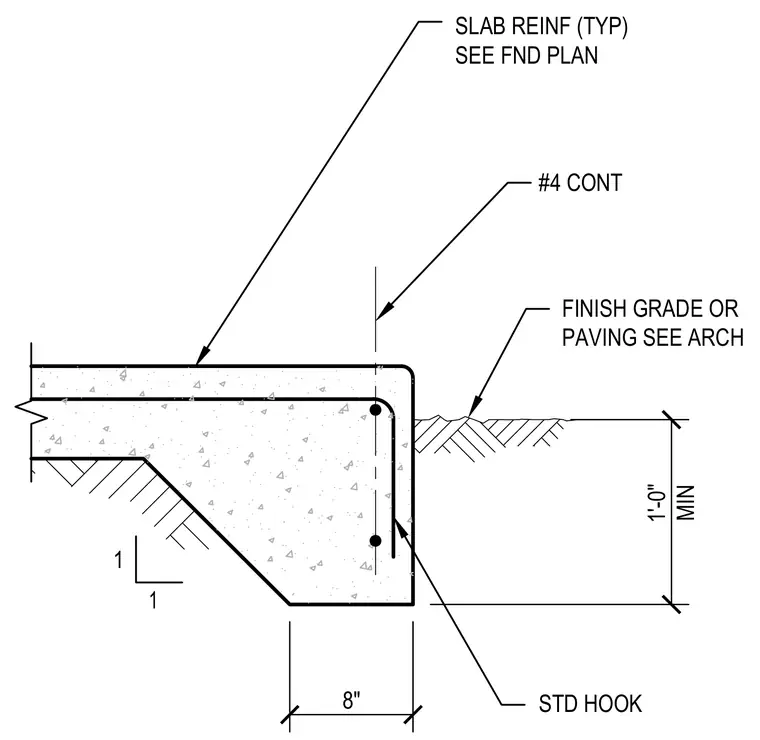

A concrete slab edge features continuous number 4 reinforcing bars with standard hooks at the perimeter termination. The slab transitions to finish grade or paving as sized per architectural drawings, maintaining a one-foot minimum depth below grade. Slab reinforcing and foundation plans govern typical reinforcement placement.
#4 CONT STD HOOK FINISH GRADE OR PAVING SEE ARCH SLAB REINF (TYP) SEE FND PLAN 1'-0" MIN 8" 1 1
