A glulam beam connects to a W24x68 steel beam using a three-quarter-inch thick knife plate and a matching HSS 6x6x3/4 stub, fastened with structural screws. The steel beam features half-inch thick stiffener plates on each side and a seven-eighths-inch thick shim plate sized to match the beam width for field welds. Tension rods attach via connection plates and knife plates, with lengths adjusted as required per plan. Wood cladding is provided by the timber manufacturer to wrap the steel elements, and architectural metal covers are included at transitions.

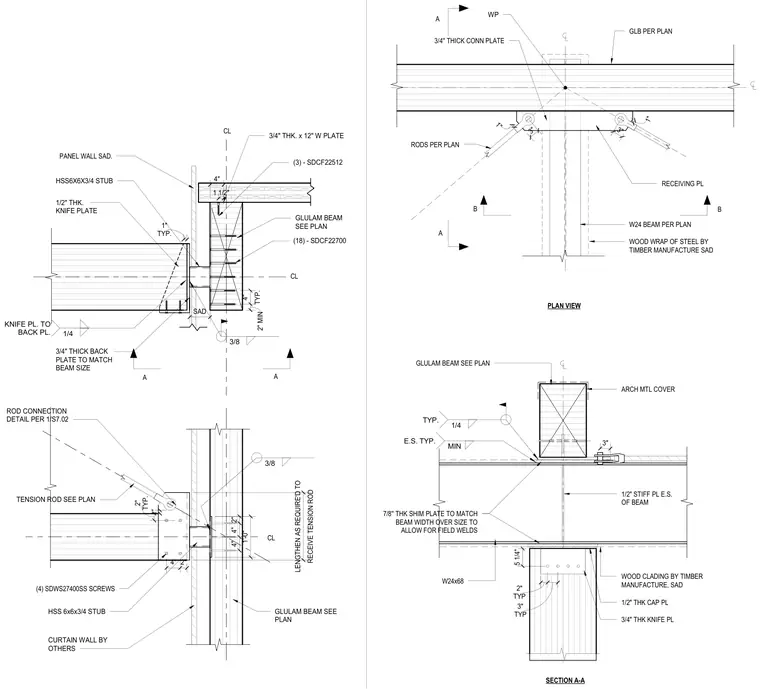

HSS 6x6x3/4 STUB (18) - SDCF22700 3/4" THK. x 12" W PLATE 3/4" THICK BACK PLATE TO MATCH BEAM SIZE 1/2" THK. KNIFE PLATE HSS6X6X3/4 STUB GLULAM BEAM SEE PLAN CURTAIN WALL BY OTHERS ROD CONNECTION DETAIL PER 1/S7.02 TENSION ROD SEE PLAN CL GLULAM BEAM SEE PLAN (3) - SDCF22512 4" 1'-0" CL 2" MIN TYP. 4" PANEL WALL SAD. CL 1 1/2" 3/8 4" 4" 2" 4" 2" TYP. 2" TYP. 1" (4) SDWS27400SS SCREWS RECEIVE TENSION ROD LENGTHEN AS REQUIRE'D TO 3/8 KNIFE PL. TO BACK PL. 1/4 1" SAD A A W24 BEAM PER PLAN W24x68 GLULAM BEAM SEE PLAN E.S. TYP. MIN 7/8'' THK SHIM PLATE TO MATCH BEAM WIDTH OVER SIZE TO ALLOW FOR FIELD WELDS SECTION A-A TYP 2" TYP 3" 5 1/4" 1/2" THK CAP PL 1/2" STIFF PL E.S. OF BEAM ARCH MTL COVER WP TYP. 1/4 3/4" THK KNIFE PL WOOD CLADING BY TIMBER MANUFACTURE, SAD PLAN VIEW WOOD WRAP OF STEEL BY TIMBER MANUFACTURE SAD RODS PER PLAN GLB PER PLAN 3/4'' THICK CONN PLATE RECEIVING PL 3" 1" 3" 1" 3" B B A A
