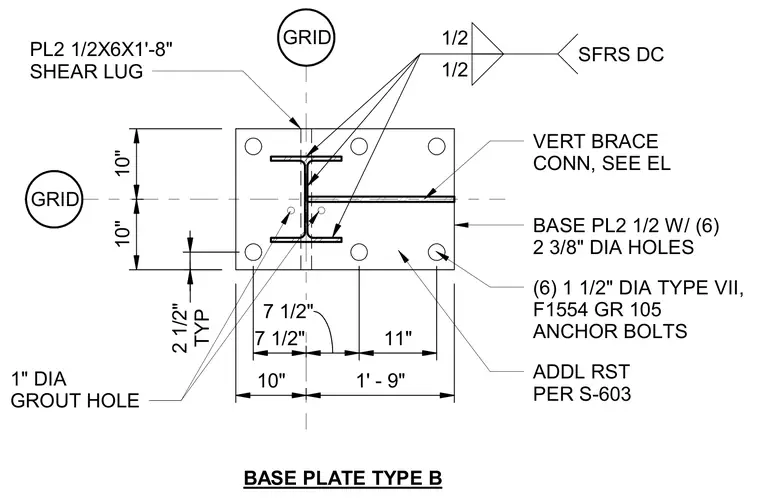

This detail outlines a heavy steel column base plate connection anchored by six 1-1/2 inch diameter ASTM F1554 Grade 105 anchor bolts. The base plate is a 2-1/2 inch thick steel plate with six 2-3/8 inch diameter bolt holes and a 1 inch diameter grout hole. A shear lug measuring 2-1/2 inches by 6 inches by 1 foot 8 inches is welded to the assembly. A vertical brace connection plate is welded to the column web with a 1/2 inch fillet weld. Additional reinforcing steel is provided per sheet S-603.
GRID 10" 1' - 9" 10" 10" 7 1/2" 7 1/2" 11" (6) 1 1/2" DIA TYPE VII, F1554 GR 105 ANCHOR BOLTS BASE PL2 1/2 W/ (6) 2 3/8" DIA HOLES 1/2 1/2 SFRS DC VERT BRACE CONN, SEE EL PL2 1/2X6X1'-8" SHEAR LUG TYP 2 1/2" GRID BASE PLATE TYPE B 1" DIA GROUT HOLE ADDL RST PER S-603
