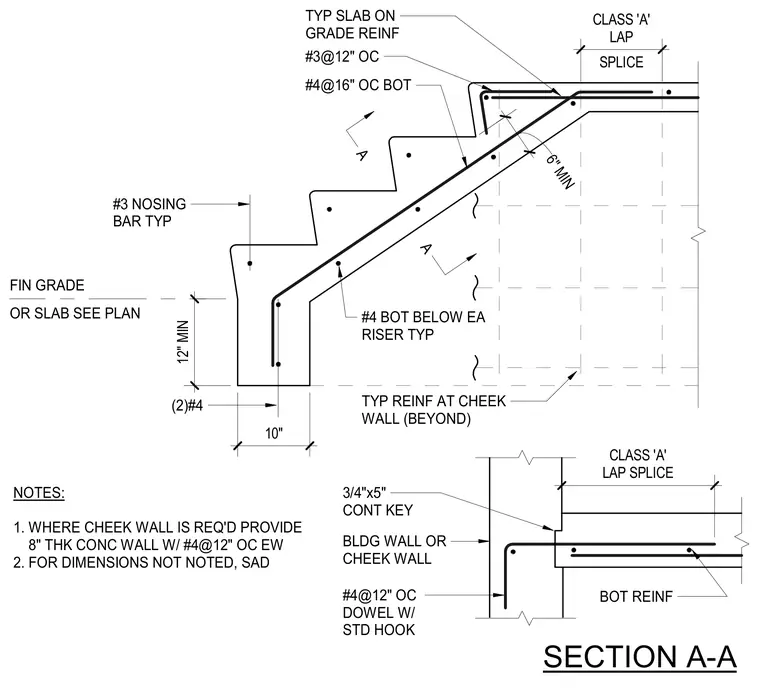

A concrete stair on grade includes bottom reinforcing bars sized at number 4 placed below each riser and number 3 bars at 12 inches on center. The stair footing features two number 4 bottom reinforcing bars with a minimum 12-inch depth and 10-inch width. A number 3 nosing bar is placed at each tread. Section A-A includes a continuous 3/4-inch by 5-inch keyway at the building wall or cheek wall with number 4 dowels at 12 inches on center featuring standard hooks. Where a cheek wall is required, an 8-inch thick concrete wall with number 4 bars at 12 inches on center each way is specified.
A SECTION A-A A #3@12" OC #4@16" OC BOT FIN GRADE (2)#4 BOT REINF TYP SLAB ON GRADE REINF #4 BOT BELOW EA RISER TYP TYP REINF AT CHEEK WALL (BEYOND) 3/4"x5" CONT KEY BLDG WALL OR CHEEK WALL #4@12" OC DOWEL W/ STD HOOK NOTES: 1. WHERE CHEEK WALL IS REQ'D PROVIDE 8" THK CONC WALL W/ #4@12" OC EW 2. FOR DIMENSIONS NOT NOTED, SAD OR SLAB SEE PLAN #3 NOSING BAR TYP SPLICE CLASS 'A' LAP 6" MIN 10" 12" MIN CLASS 'A' LAP SPLICE
