An L 4 x 4 x 68 mil by 1 foot 4 inch long angle clip is anchored to the underside of a concrete-filled metal deck perpendicular to the flutes. At the concrete and metal deck, attachment uses two 0.157-inch-diameter Hilti X-U powder-actuated fasteners with 1 1/4-inch embedment at each flute for a total of four fasteners. At the metal deck only, attachment uses four number 12 self-tapping screws at each flute for a total of four fasteners perpendicular to the flutes. A stud kicker of size and spacing per wall sections connects to the clip using four number 10 self-tapping screws.

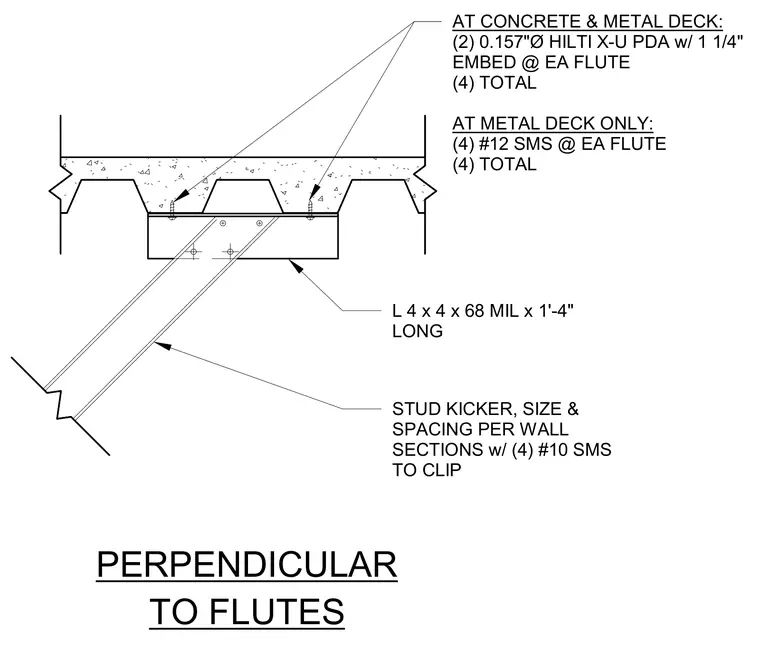

L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP AT CONCRETE & METAL DECK: (2) 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED @ EA FLUTE (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS @ EA FLUTE (4) TOTAL PERPENDICULAR TO FLUTES
