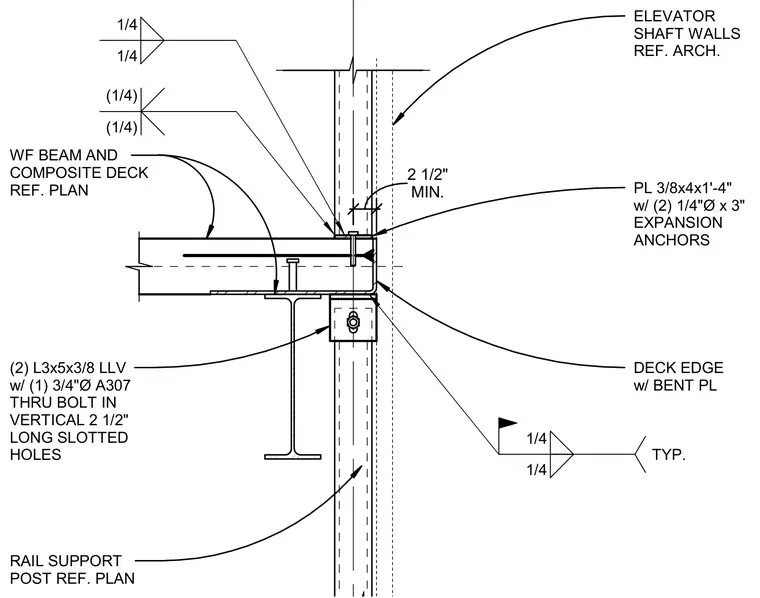

A wide flange beam and composite deck frame adjacent to an elevator shaft wall with a minimum two-and-a-half-inch clearance. A bent plate forms the deck edge, secured with a three-eighths-by-four-inch by one-foot-four-inch plate anchored using two quarter-inch-diameter by three-inch expansion anchors. A pair of three-by-five-by-three-eighths-inch long-leg-vertical angles connect below, utilizing one three-quarter-inch-diameter A307 through bolt in vertical two-and-a-half-inch long slotted holes. A rail support post is positioned below referencing the plan, welded with typical quarter-inch fillet welds.
WF BEAM AND COMPOSITE DECK REF. PLAN RAIL SUPPORT POST REF. PLAN ELEVATOR SHAFT WALLS REF. ARCH. PL 3/8x4x1'-4" w/ (2) 1/4"Ø x 3" EXPANSION ANCHORS (2) L3x5x3/8 LLV w/ (1) 3/4"Ø A307 THRU BOLT IN VERTICAL 2 1/2" LONG SLOTTED HOLES DECK EDGE w/ BENT PL 1/4 1/4 TYP. MIN. 2 1/2" 1/4 1/4 (1/4) (1/4)
