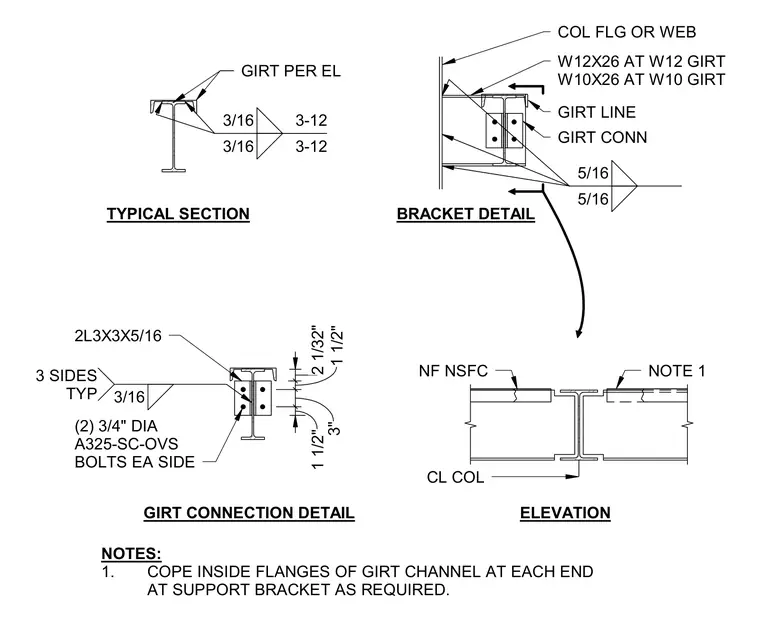

Connection of a W12x26 or W10x26 shape girt to a column flange or web utilizing a bracket detail and a girt connection detail. The girt connection employs two 3x3x5/16 inch double angles secured with two 3/4 inch diameter A325-SC-OVS bolts on each side, with specified 3/16 inch fillet welds applied on three sides typically. The bracket detail and typical section designate the girt alignment relative to the column centerline and the girt line. A note requires coping the inside flanges of the girt channel at each end at the support bracket as required.
TYPICAL SECTION GIRT PER EL BRACKET DETAIL GIRT LINE COL FLG OR WEB GIRT CONN W12X26 AT W12 GIRT W10X26 AT W10 GIRT NOTE 1 CL COL ELEVATION NOTES: 1. COPE INSIDE FLANGES OF GIRT CHANNEL AT EACH END AT SUPPORT BRACKET AS REQUIRED. 1 1/2" 3" 1 1/2" 2 1/32" (2) 3/4" DIA A325-SC-OVS BOLTS EA SIDE 2L3X3X5/16 GIRT CONNECTION DETAIL 3/16 3-12 3/16 3-12 5/16 5/16 3/16 3 SIDES TYP NF NSFC
