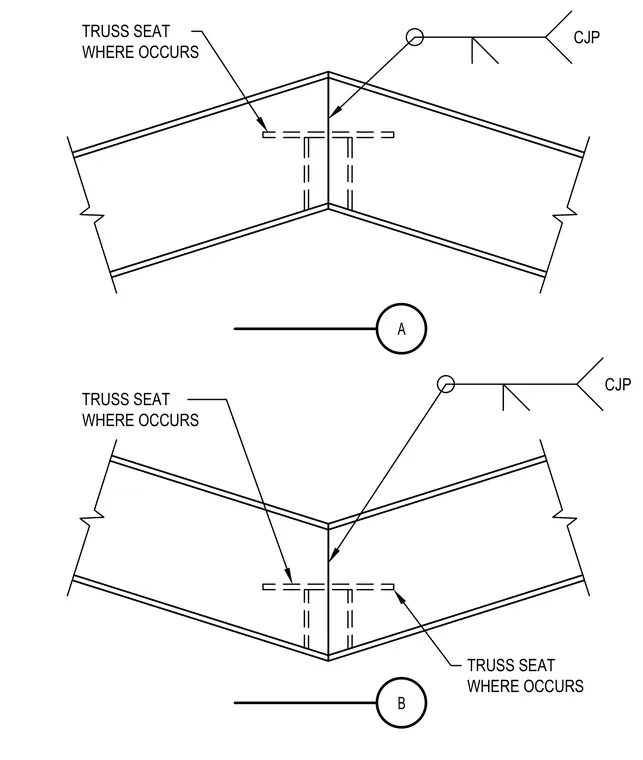

Two structural steel truss members meet at a slope break joint connected by a complete joint penetration weld at the peak. Truss seats are provided where indicated to support the assembly. The ridge joint is detailed with a complete joint penetration weld across the top chord intersection.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
