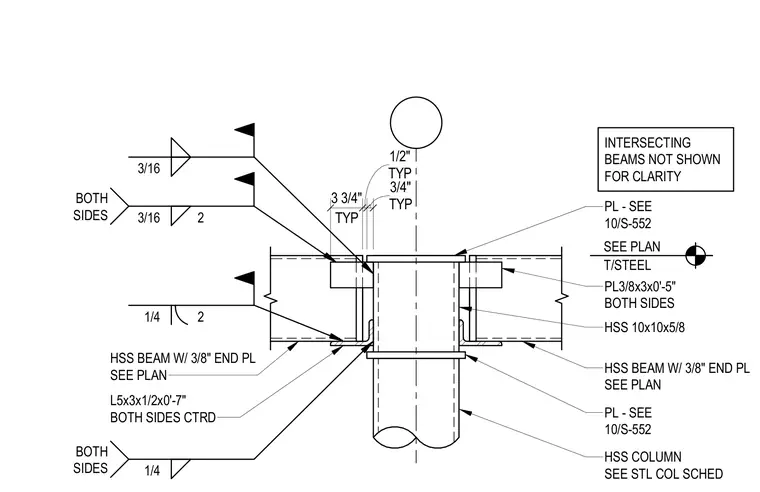

An HSS 10x10x5/8 hollow structural section column supports framing HSS beams equipped with three-eighths-inch end plates. Symmetrical L5x3x1/2-by-zero-foot-seven angles are centered beneath the beams on both sides and secured with quarter-inch fillet welds on both sides. Three-eighth-by-three-by-zero-foot-five plates are positioned on both sides and attached with three-sixteenths-inch fillet welds on both sides. Intersecting beams are omitted from the view for clarity. Additional plates are referenced per sheet 10/S-552, and the column size is determined from the structural column schedule.
TYP 3 3/4" TYP 1/2" TYP 3/4" 3/16 1/4 2 1/4 BOTH SIDES 3/16 2 BOTH SIDES PL3/8x3x0'-5" BOTH SIDES PL - SEE 10/S-552 HSS 10x10x5/8 PL - SEE 10/S-552 HSS COLUMN SEE STL COL SCHED HSS BEAM W/ 3/8" END PL SEE PLAN HSS BEAM W/ 3/8" END PL SEE PLAN L5x3x1/2x0'-7" BOTH SIDES CTRD INTERSECTING BEAMS NOT SHOWN FOR CLARITY T/STEEL SEE PLAN
