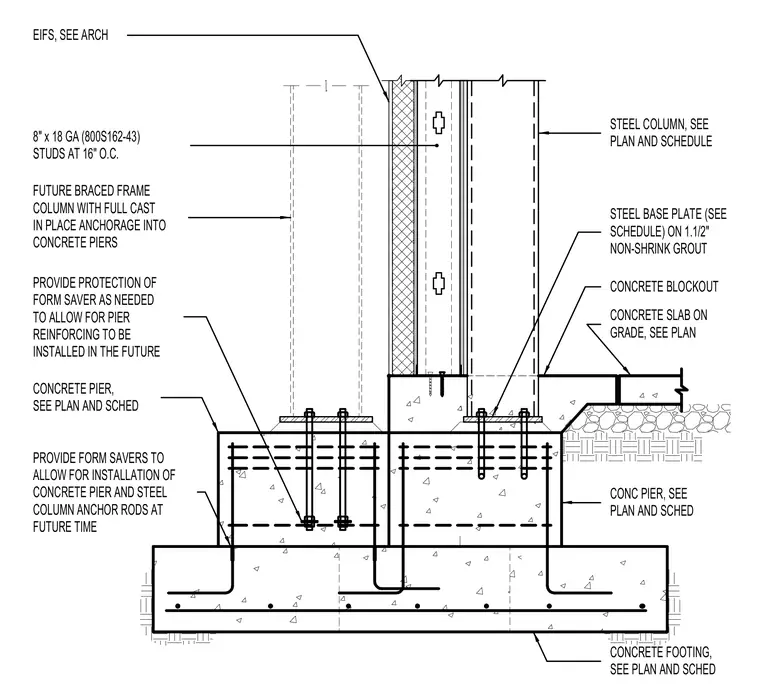

A structural steel column rests on a steel base plate set over one and one-half inches of non-shrink grout and a concrete pier. The concrete pier is supported by a continuous concrete footing with reinforcing bars and dowels. Adjacent to the column, a concrete blockout transitions to a concrete slab on grade. An exterior wall assembly features eight-inch by eighteen-gauge metal studs at sixteen inches on center with EIFS finish. A designated location for a future braced frame column includes full cast-in-place anchorage into concrete piers with form savers and protection for future anchor rod and pier reinforcing installation.
CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT CONCRETE FOOTING, SEE PLAN AND SCHED EIFS, SEE ARCH 8" x 18 GA (800S162-43) STUDS AT 16" O.C. CONC PIER, SEE PLAN AND SCHED FUTURE BRACED FRAME COLUMN WITH FULL CAST IN PLACE ANCHORAGE INTO CONCRETE PIERS PROVIDE FORM SAVERS TO ALLOW FOR INSTALLATION OF CONCRETE PIER AND STEEL COLUMN ANCHOR RODS AT FUTURE TIME PROVIDE PROTECTION OF FORM SAVER AS NEEDED TO ALLOW FOR PIER REINFORCING TO BE INSTALLED IN THE FUTURE CONCRETE PIER, SEE PLAN AND SCHED
