A design-build fall arrest anchor and plate are surface mounted to timber decking and sheathing sized per plan. The anchor assembly is secured using wood screw type fasteners with a maximum length of 5 inches. The total height above the deck is limited to a maximum of 2 feet.

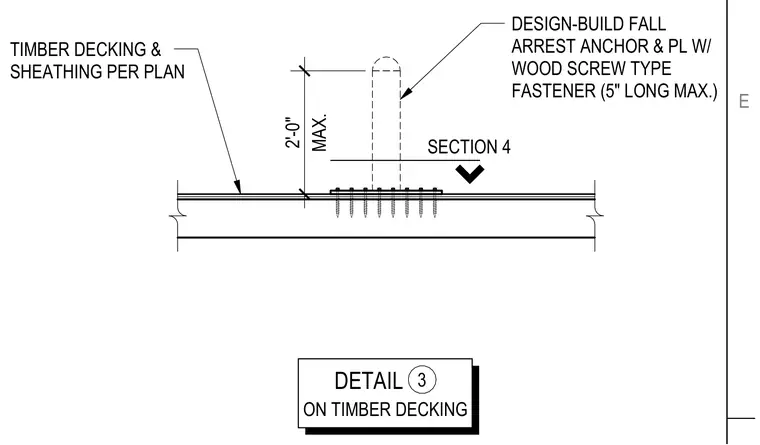

DETAIL ON TIMBER DECKING 3 MAX. 2'-0" TIMBER DECKING & SHEATHING PER PLAN DESIGN-BUILD FALL ARREST ANCHOR & PL W/ WOOD SCREW TYPE FASTENER (5" LONG MAX.) SECTION 4 E
