A barge beam splice connects glulam barge beams with a continuous structural steel angle (L8x6x7/16) and a CS16 strap. The connection is fastened using 1/4-inch diameter by 3-1/2-inch and 6-inch Simpson SDS heavy-duty wood screws spaced at 3 inches and 6 inches center-to-center staggered. Clearances of 3/4 inch and 1 inch from wood edges are maintained as specified on the drawing. The assembly incorporates cross-laminated timber decking bearing on the glulam framing members.

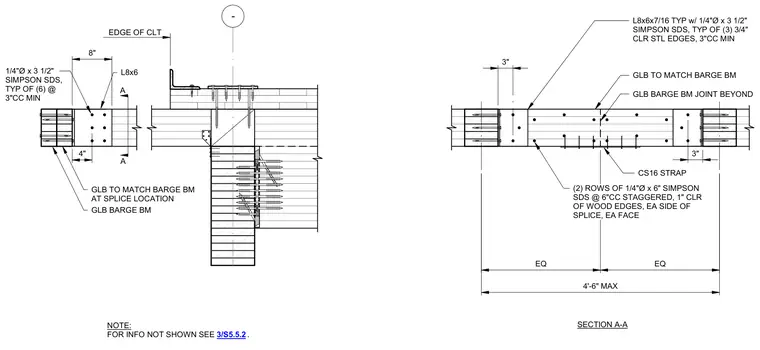

GLB BARGE BM JOINT BEYOND CS16 STRAP L8x6x7/16 TYP w/ 1/4"Ø x 3 1/2" SIMPSON SDS, TYP OF (3) 3/4" CLR STL EDGES, 3"CC MIN SECTION A-A - GLB TO MATCH BARGE BM AT SPLICE LOCATION A A EDGE OF CLT GLB BARGE BM L8x6 4'-6" MAX EQ EQ GLB TO MATCH BARGE BM (2) ROWS OF 1/4"Ø x 6" SIMPSON SDS @ 6"CC STAGGERED, 1" CLR OF WOOD EDGES, EA SIDE OF SPLICE, EA FACE NOTE: FOR INFO NOT SHOWN SEE . 3/S5.5.2 8" 4" 1/4"Ø x 3 1/2" SIMPSON SDS, TYP OF (6) @ 3"CC MIN 3" 3"
