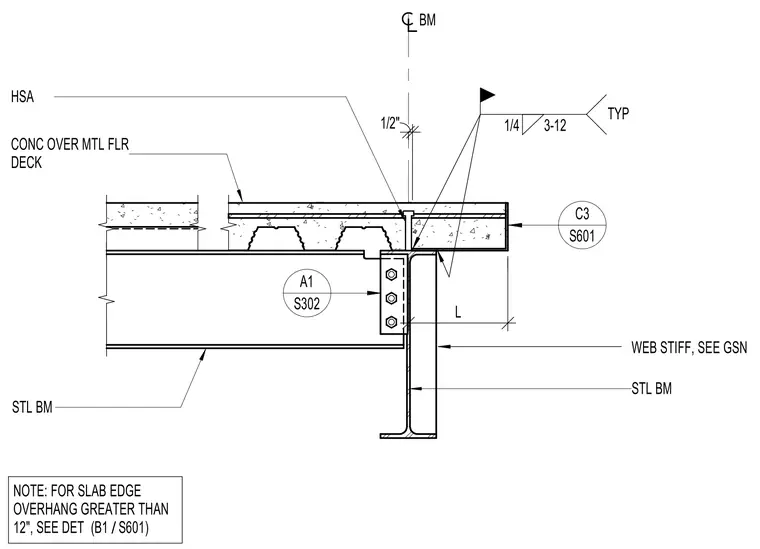

A concrete slab over metal floor deck bears on a steel beam supported by a perpendicular steel beam. A one-quarter inch typical fillet weld connects framing members, with a one-half inch headed stud anchor embedded in the concrete slab. A web stiffener is provided on the supporting steel beam per general structural notes. For slab edge overhangs greater than twelve inches, refer to detail B1 on sheet S601.
STL BM CONC OVER MTL FLR DECK L TYP 1/4 3-12 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET WEB STIFF, SEE GSN A1 S302 C3 S601 / (B1 S601)
