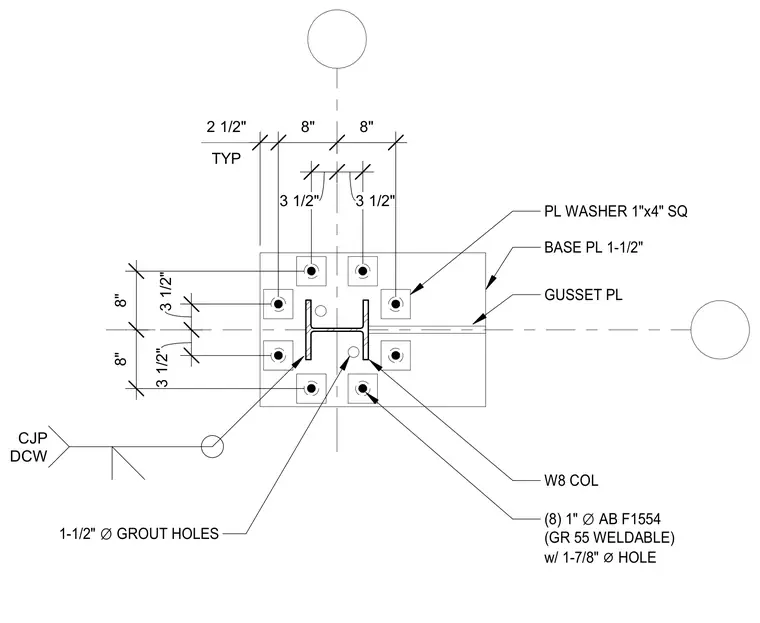

A buckling-restrained braced frame column base connection is supported by a one-and-a-half-inch-thick base plate and a gusset plate. The wide-flange column is secured with eight one-inch-diameter ASTM F1554 Grade 55 weldable anchor bolts featuring one-and-seven-eighths-inch-diameter holes and one-inch-by-four-inch square plate washers. One-and-a-half-inch-diameter grout holes are provided in the base plate. Complete joint penetration welds connect the components.
GUSSET PL BASE PL 1-1/2" W8 COL (8) 1" ∅ AB F1554 (GR 55 WELDABLE) w/ 1-7/8" ⌀ HOLE PL WASHER 1"x4" SQ 1-1/2" ∅ GROUT HOLES 8" 8" 3 1/2" 3 1/2" 3 1/2" 3 1/2" TYP 2 1/2" 8" 8" CJP DCW
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
