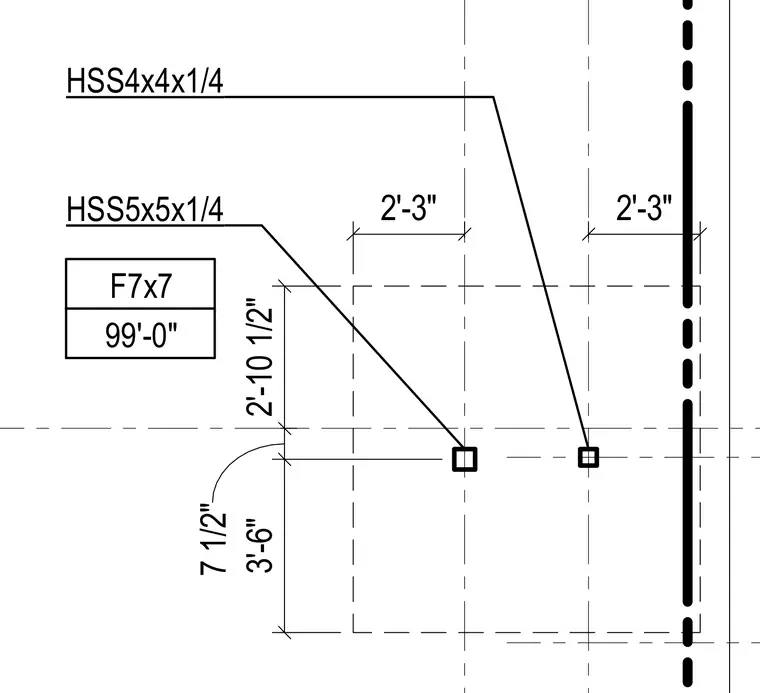

This structural plan details the positioning of an HSS4x4x1/4 hollow structural section column and an HSS5x5x1/4 hollow structural section column relative to column grid lines and elevation markers. Dimensions of 2 feet 3 inches, 2 feet 10 and one-half inches, 7 and one-half inches, and 3 feet 6 inches establish the precise layout and spacing of the steel members. A schedule marker designates footing F7x7 at an elevation of 99 feet 0 inches.
