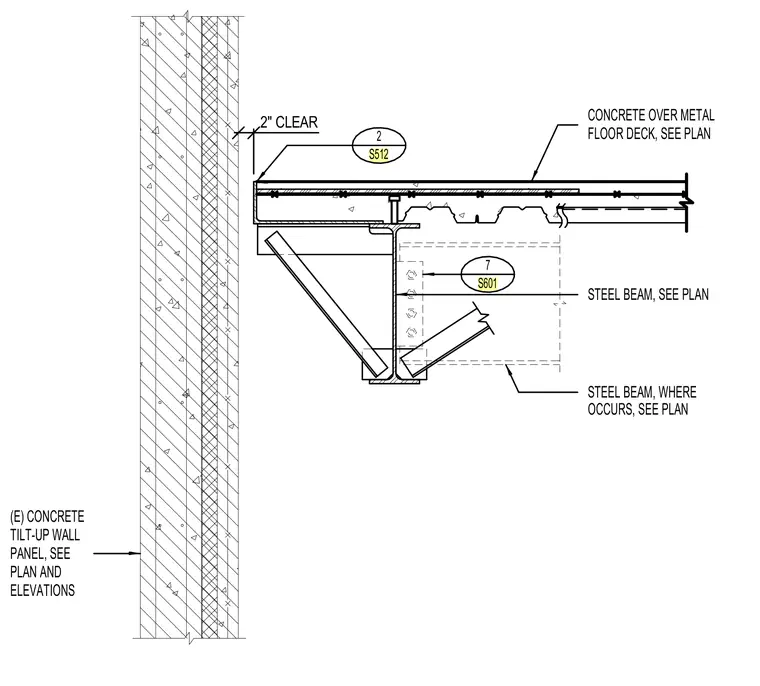

A concrete over metal floor deck bears adjacent to an existing concrete tilt-up wall panel, maintaining a two-inch clear gap. The floor assembly is supported by a structural steel beam sized per plan, with connected steel framing where indicated. An angle or edge form maintains the slab termination at the wall boundary.
7 S601 2 S512 CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BEAM, SEE PLAN TILT-UP WALL PANEL, SEE (E) CONCRETE PLAN AND ELEVATIONS STEEL BEAM, WHERE OCCURS, SEE PLAN 2" CLEAR
