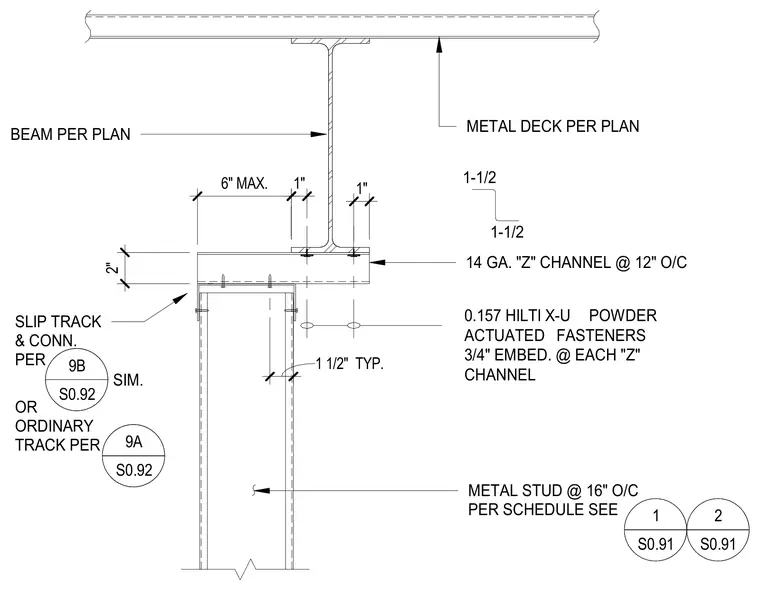

A structural steel beam supports an overhead metal deck and connects below to fourteen-gauge Z-channels spaced at twelve inches on center. The Z-channels anchor to the beam flange using fasteners and extend across to tie into the top track of a cold-formed metal stud wall. Metal studs spaced at sixteen inches on center frame vertically into the slip track or ordinary track connection. Fasteners include zero-point-one-five-seven-inch Hilti X-U powder-actuated fasteners with three-quarter-inch embedment at each Z-channel.
METAL DECK PER PLAN BEAM PER PLAN SLIP TRACK & CONN. PER METAL STUD @ 16" O/C PER SCHEDULE SEE 0.157 HILTI X-U POWDER ACTUATED FASTENERS 3/4" EMBED. @ EACH "Z" CHANNEL 14 GA. "Z" CHANNEL @ 12" O/C 1-1/2 1-1/2 OR ORDINARY TRACK PER 2" 1" 1 1/2" TYP. 1 S0.91 2 S0.91 9A S0.92 9B S0.92 6" MAX. 1" SIM.
