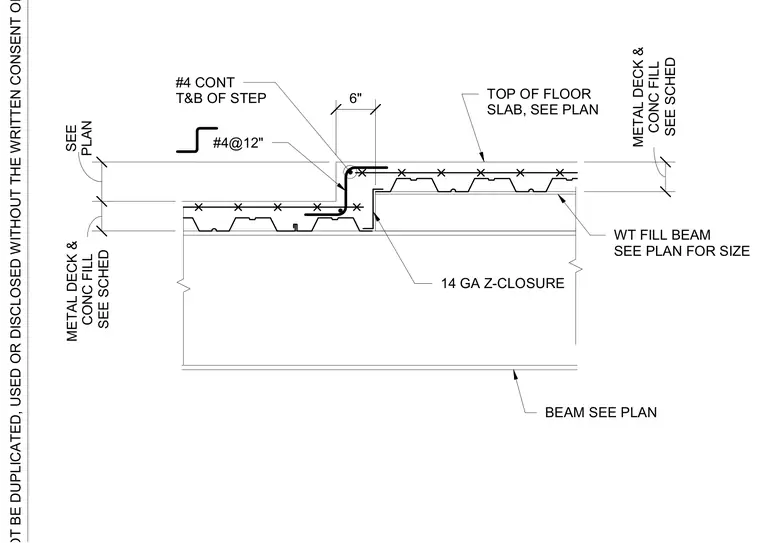

A structural section shows a stepped floor slab transition bearing on composite metal deck and concrete fill over supporting steel beams. A fourteen gauge Z-closure angles down the vertical face of the step. Continuous number four reinforcing bars run along the top and bottom of the step, complemented by number four bars spaced at twelve inches on center.
BEAM SEE PLAN TOP OF FLOOR SLAB, SEE PLAN 14 GA Z-CLOSURE #4@12" #4 CONT T&B OF STEP WT FILL BEAM SEE PLAN FOR SIZE SEE SCHED METAL DECK & CONC FILL PLAN SEE 6" SEE SCHED METAL DECK & CONC FILL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
