Metal deck openings may be unreinforced up to a maximum thirteen-inch diameter or square cut centered on the deck low flute, provided a maximum of two webs and one low flute are cut. Alternatively, a six-inch maximum unreinforced hole may be located at random with a maximum of one low flute cut.

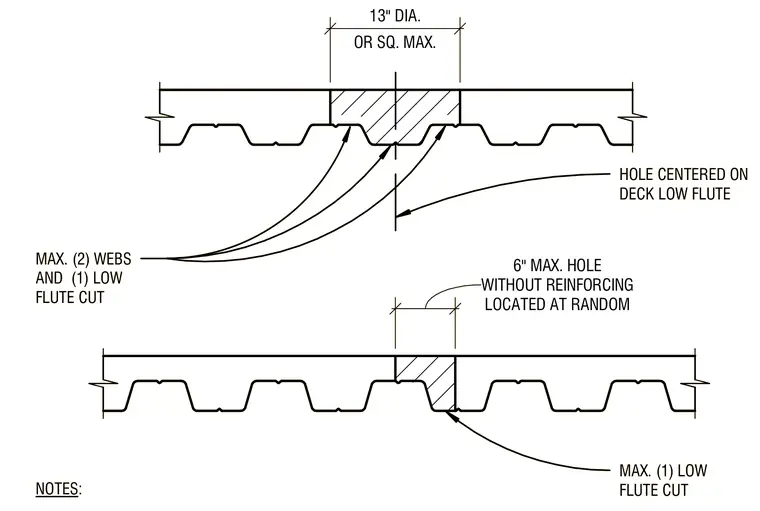

HOLE CENTERED ON DECK LOW FLUTE MAX. (2) WEBS AND (1) LOW FLUTE CUT MAX. (1) LOW FLUTE CUT OR SQ. MAX. 13" DIA. LOCATED AT RANDOM 6" MAX. HOLE WITHOUT REINFORCING NOTES: HOLE CENTERED ON DECK LOW FLUTE MAX. (2) WEBS AND (1) LOW FLUTE CUT MAX. (1) LOW FLUTE CUT OR SQ. MAX. 13" DIA. LOCATED AT RANDOM 6" MAX. HOLE WITHOUT REINFORCING NOTES:
