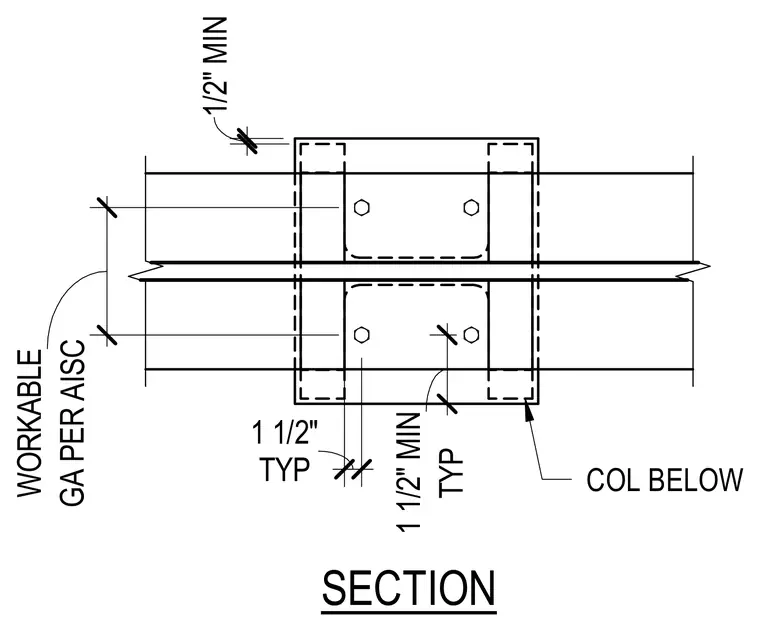

This structural detail shows a column splice connection with plates and bolts positioned over the column below. Dimensions indicate a one-half inch minimum clearance and typical one-and-one-half inch bolt spacing. Gauge dimensions are maintained per American Institute of Steel Construction standards.
