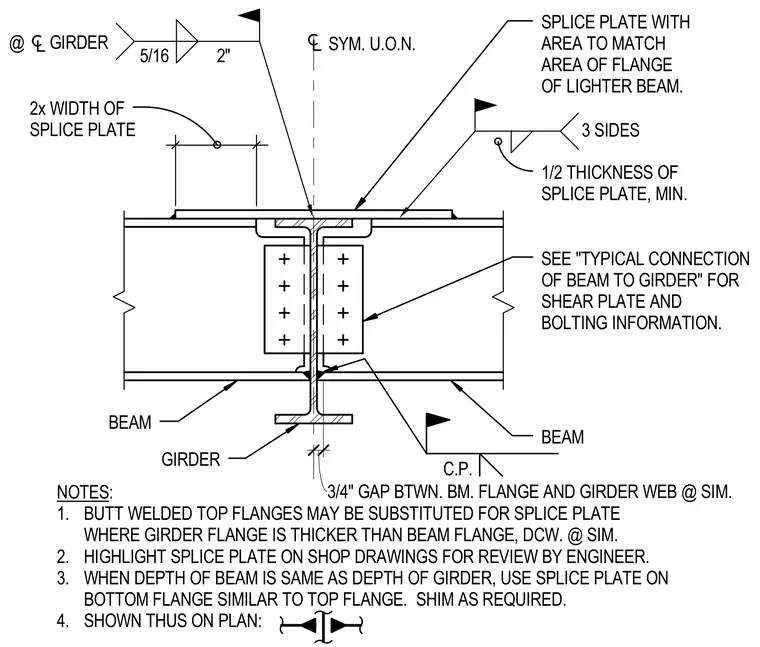

This structural detail shows a beam framing into a girder with a moment connection utilizing a top flange splice plate. The splice plate features a cross-sectional area matching the flange of the lighter beam and a minimum width equal to two times the splice plate width. Fillet welds of five-sixteenths inch size weld the splice plate around three sides symmetrically unless otherwise noted, with a minimum thickness equal to one-half the splice plate thickness. A three-quarter-inch gap is provided between the beam flange and girder web. A shear plate with multiple bolts connects the beam web to the girder web, sized per the reference detail. Butt-welded top flanges may be substituted for the splice plate where the girder flange is thicker than the beam flange.
GIRDER BEAM BEAM 1/2 THICKNESS OF SPLICE PLATE, MIN. 2x WIDTH OF SPLICE PLATE 5/16 2" @ GIRDER 3 SIDES SYM. U.O.N. NOTES: 1. BUTT WELDED TOP FLANGES MAY BE SUBSTITUTED FOR SPLICE PLATE WHERE GIRDER FLANGE IS THICKER THAN BEAM FLANGE, DCW. @ SIM. 2. HIGHLIGHT SPLICE PLATE ON SHOP DRAWINGS FOR REVIEW BY ENGINEER. 3. WHEN DEPTH OF BEAM IS SAME AS DEPTH OF GIRDER, USE SPLICE PLATE ON BOTTOM FLANGE SIMILAR TO TOP FLANGE. SHIM AS REQUIRED. 4. SHOWN THUS ON PLAN: SEE "TYPICAL CONNECTION OF BEAM TO GIRDER" FOR SHEAR PLATE AND BOLTING INFORMATION. SPLICE PLATE WITH AREA TO MATCH AREA OF FLANGE OF LIGHTER BEAM. 3/4" GAP BTWN. BM. FLANGE AND GIRDER WEB @ SIM. C.P.
