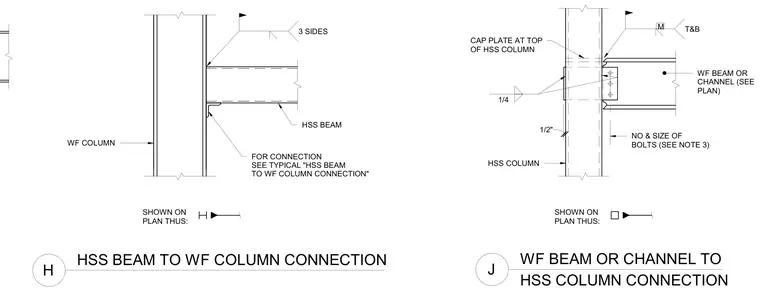

An HSS beam connects to a wide-flange column using welded connections on three sides top and bottom, with connection details sized per plan. A wide-flange beam or channel frames into an HSS column featuring a cap plate at the top of the HSS column and bolted connections sized per note three. Fillet welds of one-quarter inch size join the framing members to the support columns as indicated by the weld symbols. Plan symbol markers identify each specific connection type for structural layout coordination.
HSS BEAM TO WF COLUMN CONNECTION H WF BEAM OR CHANNEL TO J HSS COLUMN CONNECTION SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) CAP PLATE AT TOP OF HSS COLUMN 3 SIDES T&B 1/2" 1/4 M SHOWN ON PLAN THUS:
