Edge of Slab Connection at Wide Flange and HSS Column

Materials

Steel Glass / Glazing

Elements

Columns Floors / Slabs

Connections

HSS Connection

About this detail

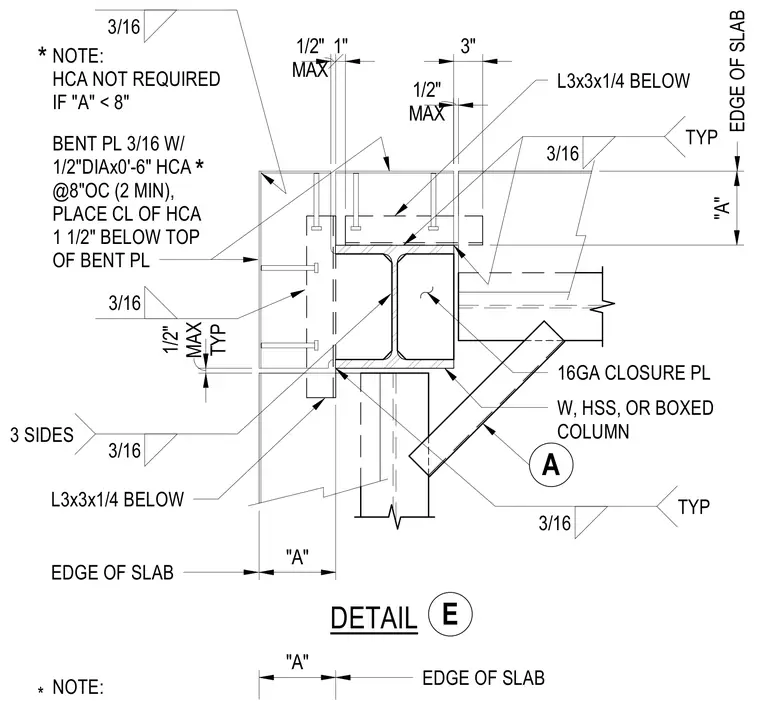

An edge of slab connection frames into a wide-flange, hollow structural section, or boxed column. A 3/16-inch bent plate is secured with half-inch diameter by six-inch long headed concrete anchors spaced at eight inches on center with a minimum of two anchors, positioned with their centerline one and a half inches below the top of the bent plate. A 3x3x1/4-inch angle is located below the edge of the slab along with a 16-gauge closure plate, welded with 3/16-inch fillets typically on three sides. Dimensions specify maximum gaps of half an inch and offsets of one inch and three inches for the edge of slab relative to the column face.
