This structural steel connection detail shows a wide-flange beam framing into the web of a W14 or smaller column using a connection plate sized per schedule. The connection plate is fillet welded to the column flange, with optional girder stiffener plates matched to the connection plate thickness and clipped at the corners to fit the column 'k' distance. Stiffener plates are left unwelded in the designated 'k' zone as indicated on the drawing. Bolts sized per schedule attach the beam web to the connection plate. Additional plan and elevation views illustrate one-sided beam framing conditions and offset requirements for opposite beams.

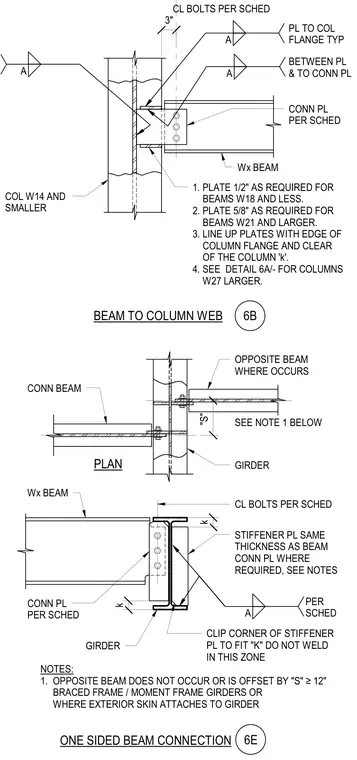

BEAM TO COLUMN WEB ONE SIDED BEAM CONNECTION COL W14 AND SMALLER BETWEEN PL & TO CONN PL CONN PL PER SCHED GIRDER STIFFENER PL SAME THICKNESS AS BEAM CONN PL WHERE REQUIRED, SEE NOTES CL BOLTS PER SCHED CL BOLTS PER SCHED PER SCHED CONN PL PER SCHED CLIP CORNER OF STIFFENER PL TO FIT "K" DO NOT WELD IN THIS ZONE 1. PLATE 1/2" AS REQUIRED FOR BEAMS W18 AND LESS. 2. PLATE 5/8" AS REQUIRED FOR BEAMS W21 AND LARGER. 3. LINE UP PLATES WITH EDGE OF COLUMN FLANGE AND CLEAR OF THE COLUMN 'k'. 4. SEE DETAIL 6A/- FOR COLUMNS W27 LARGER. A A A A 3" k k Wx BEAM PL TO COL FLANGE TYP 6B 6E "S" PLAN CONN BEAM OPPOSITE BEAM WHERE OCCURS SEE NOTE 1 BELOW GIRDER NOTES: 1. OPPOSITE BEAM DOES NOT OCCUR OR IS OFFSET BY "S" ≥12" BRACED FRAME / MOMENT FRAME GIRDERS OR WHERE EXTERIOR SKIN ATTACHES TO GIRDER Wx BEAM
