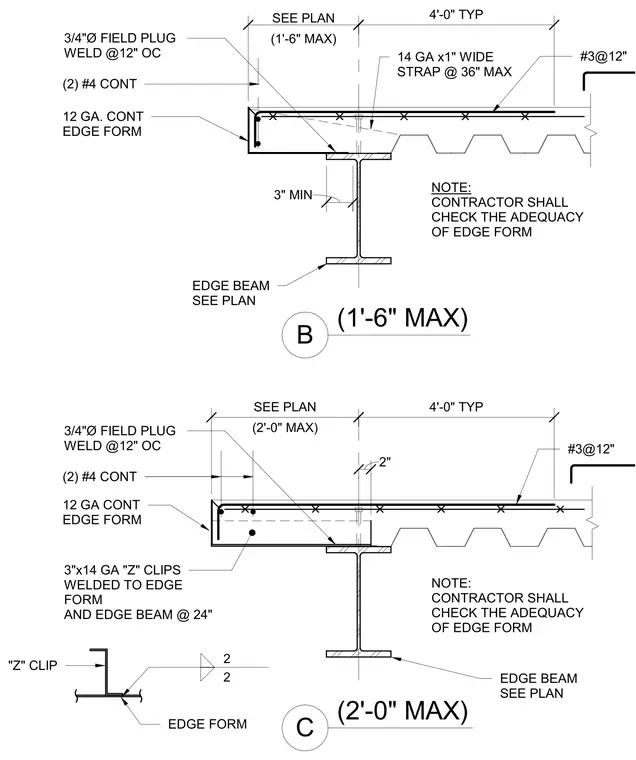

The assembly comprises a concrete slab poured over metal decking and supported by a structural steel edge beam sized per plan. The perimeter edge is contained by a continuous 12-gauge edge form reinforced with two continuous number 4 rebar and secured with 3/4-inch diameter field plug welds spaced at 12 inches on center. Detail B utilizes a 14-gauge by 1-inch wide strap spaced at a maximum of 36 inches, while Detail C incorporates 3-inch by 14-gauge Z clips welded to the edge form and edge beam at 24 inches on center. Additional temperature reinforcement consists of number 3 rebar spaced at 12 inches on center. The contractor is required to verify the structural adequacy of the edge form prior to concrete placement.
(1'-6" MAX) B #3@12" 12 GA. CONT EDGE FORM NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM 14 GA x1" WIDE STRAP @ 36" MAX (1'-6" MAX) SEE PLAN (2'-0" MAX) C #3@12" 3"x14 GA "Z" CLIPS WELDED TO EDGE FORM AND EDGE BEAM @ 24" "Z" CLIP NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM EDGE BEAM SEE PLAN EDGE FORM (2) #4 CONT 12 GA CONT EDGE FORM 3/4"Ø FIELD PLUG WELD @12" OC 4'-0" TYP (2'-0" MAX) SEE PLAN EDGE BEAM SEE PLAN 4'-0" TYP 3" MIN 2 2 2" (2) #4 CONT 3/4"Ø FIELD PLUG WELD @12" OC
