Structural · S-BKC42

Concrete Foundation Wall and Slab Junction Details

Materials

Concrete Reinforced Concrete

Elements

Walls Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

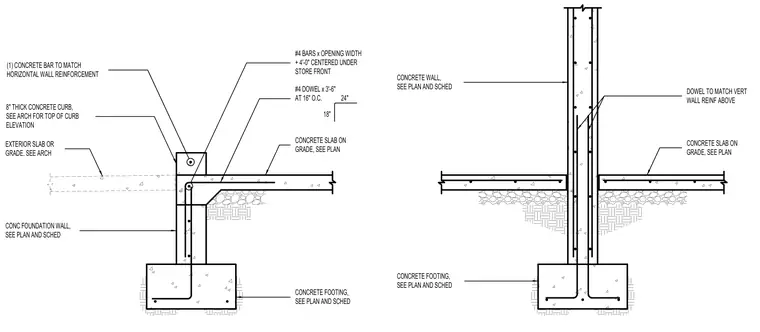

Concrete foundation walls rest on concrete footings with slab-on-grade connections on both sides. The left assembly incorporates an eight-inch thick concrete curb reinforced with horizontal bars and vertical dowels sized per the structural plan and schedule. The exterior slab or grade transitions at the curb, while interior concrete slabs-on-grade bear against the foundation wall. Number four dowels at sixteen inches on center tie the slab and wall together, accompanied by number four bars matching the opening width plus four feet centered under the storefront. The right assembly shows a standard interior concrete wall and footing condition with vertical wall reinforcement spliced to dowels extending from the footing below.
