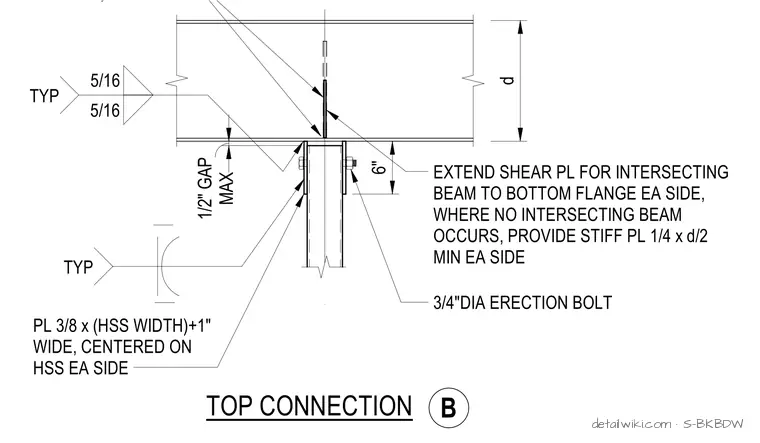

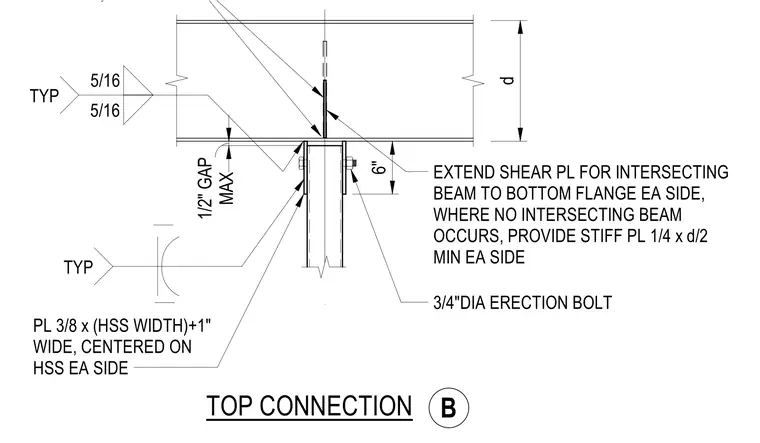

A hollow structural section column connects below a structural beam utilizing a three-eighths-inch thick plate sized one inch wider than the hollow structural section width and centered on each side. A three-quarters-inch diameter erection bolt provides temporary alignment at the top connection, maintained with a maximum half-inch gap. The shear plate extends to the bottom flange on each side for an intersecting beam, or alternatively requires a quarter-inch by depth-over-two minimum stiffener plate on each side. Welds are specified as typical five-sixteenth-inch fillets joining the connection plates.
EXTEND SHEAR PL FOR INTERSECTING BEAM TO BOTTOM FLANGE EA SIDE, WHERE NO INTERSECTING BEAM OCCURS, PROVIDE STIFF PL 1/4 x d/2 MIN EA SIDE PL 3/8 x (HSS WIDTH)+1" WIDE, CENTERED ON HSS EA SIDE 3/4"DIA ERECTION BOLT TOP CONNECTION TYP 5/16 5/16 TYP B MAX 1/2" GAP d 6"
