A davit socket pedestal is framed between structural support beams sized per plan, utilizing a gravity moment connection to the nearest beam. Typical framing around the socket pedestal is coordinated with the structural plan and includes an offset at the supporting column.

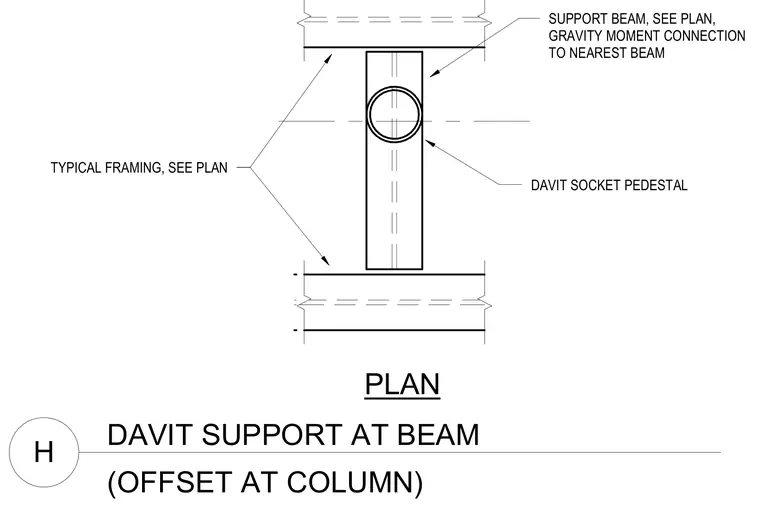

PLAN DAVIT SOCKET PEDESTAL DAVIT SUPPORT AT BEAM H (OFFSET AT COLUMN) SUPPORT BEAM, SEE PLAN, GRAVITY MOMENT CONNECTION TO NEAREST BEAM TYPICAL FRAMING, SEE PLAN
