Structural · S-BJMYW

Composite Beam and Metal Deck Floor Assembly

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks

Connections

Shear Stud / Composite

About this detail

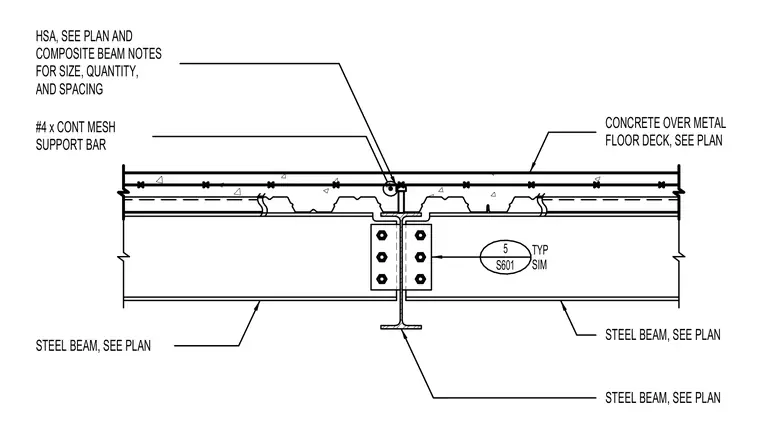

A composite floor assembly features a concrete slab poured over a metal floor deck, supported by structural steel framing. Headed stud anchors welded to the top flange of the steel beam provide composite action between the concrete slab and the steel member. A continuous number 4 reinforcing mesh support bar is positioned within the concrete topping over the deck flutes. Steel framing members and sizes are specified per the structural plans. A bolted shear connection joins the structural steel beam to the supporting girder.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
