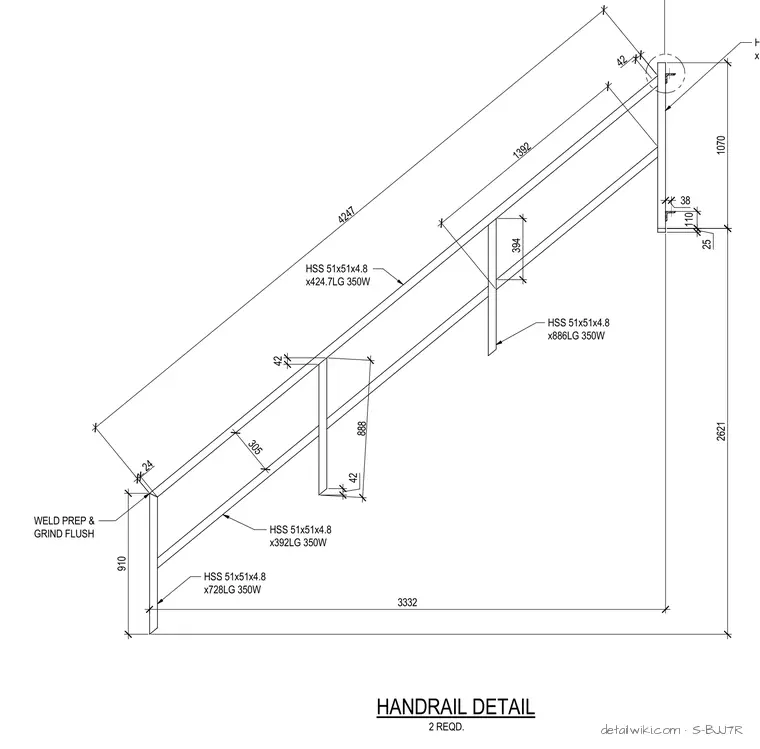

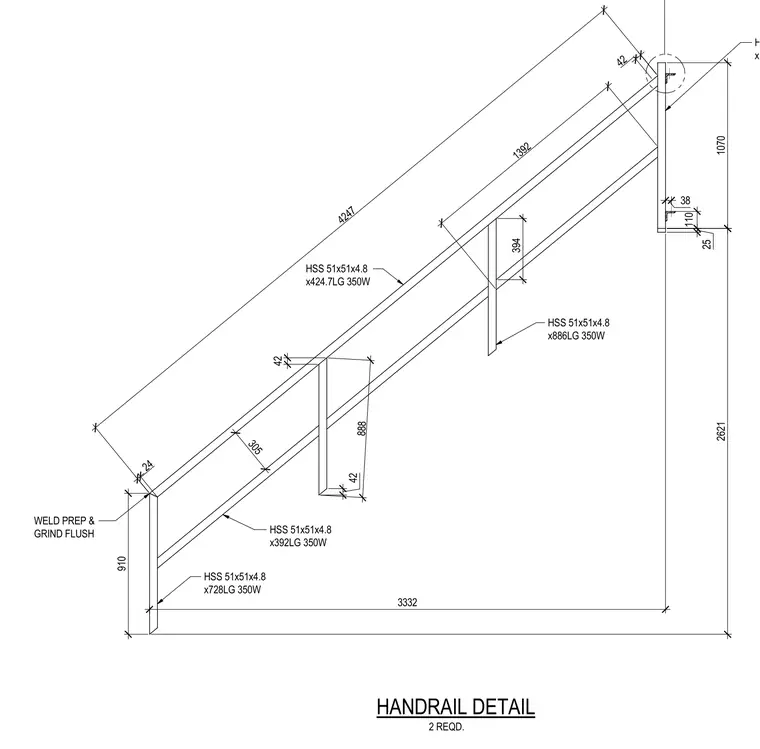

S-BJJ7R — Handrail Detail

Structural · S-BJJ7R

Handrail Detail

Units: metric
Sheet: S-MB-8.05
Discipline: Structural

Materials

Elements

Railings / Guards

Connections

HSS Connection Welded Connection

Text on the drawing

HANDRAIL DETAIL 2 REQD. 1070 25 110 38 2621 3332 910 394 WELD PREP & GRIND FLUSH HSS 51x51x4.8 x886LG 350W HSS 51x51x4.8 x728LG 350W HSS 51x51x4.8 x392LG 350W 305 888 42 42 1392 HSS 51x51x4.8 x424.7LG 350W 4247 42 24 HSS 51x51x4.8 x1070LG 350W

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
