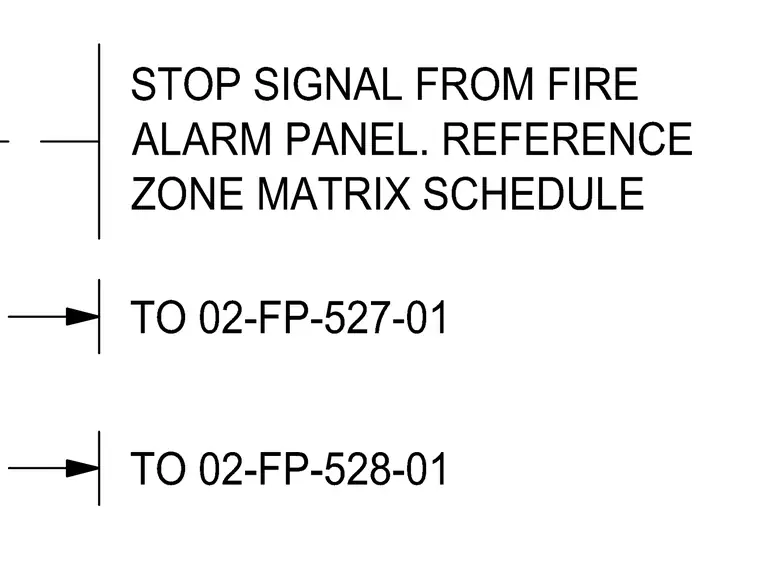

A stop signal from the fire alarm panel receives its direction from the zone matrix schedule. Lead lines route the signal to sheet 02-FP-527-01 and sheet 02-FP-528-01.
