Structural · S-BJFQ6

HSS Louver Support Detail

Materials

Steel

Elements

Columns Beams Arches Roof / Floor Openings

Connections

HSS Connection

About this detail

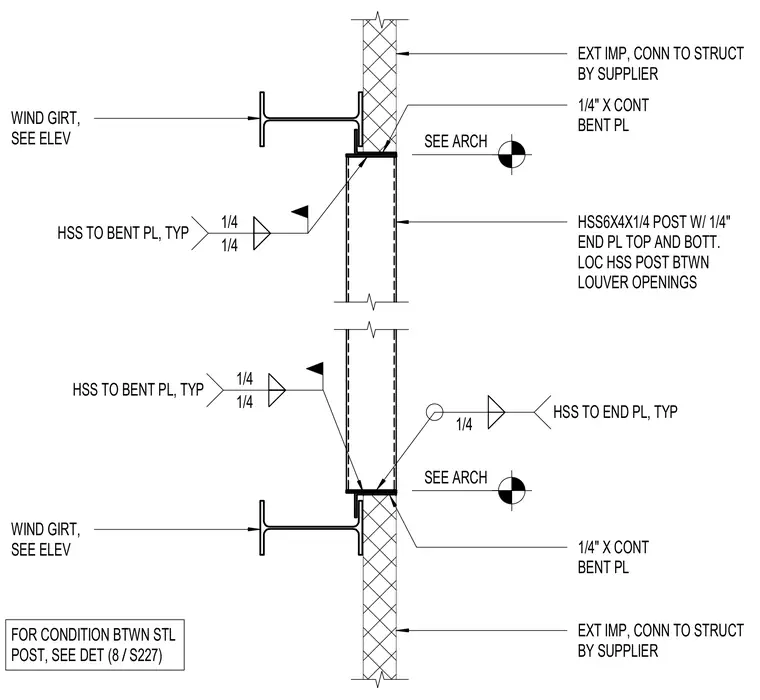

An HSS6x4x1/4 structural steel post with one-quarter-inch thick end plates at the top and bottom supports louver openings between exterior insulated metal panels. The hollow structural section post is located between louver openings and connects to the structural framing with continuous one-quarter-inch bent plates. Wind girts sized per elevation frame into the assembly, while exterior insulated metal panels connect to the structure by the supplier. One-quarter-inch fillet welds secure the hollow structural section to the end plates and bent plates typically. Additional conditions between steel posts reference detail eight on sheet S227.
