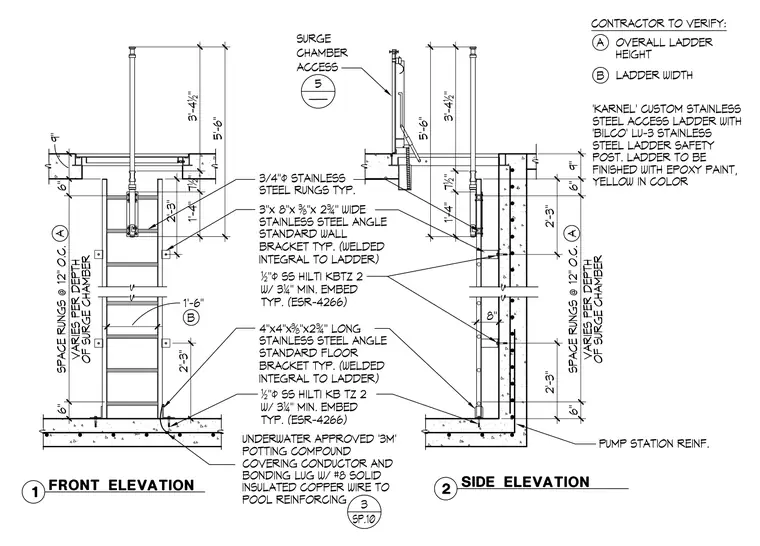

A custom stainless steel access ladder is mounted inside a reinforced concrete surge chamber with standard wall and floor brackets welded integral to the ladder. The 3/4-inch diameter stainless steel rungs are spaced at 12 inches on center and the assembly includes a Bilco LU-3 stainless steel ladder safety post. The brackets are anchored to the concrete structure using half-inch diameter stainless steel Hilti KB TZ 2 expansion anchors with 3-and-3/4-inch minimum embedment per ESR-4266. A bonding lug with number 8 solid insulated copper wire connects the pool reinforcing and is covered with underwater-approved 3M potting compound. The ladder is finished with a yellow epoxy paint.
3 SP.10 5 - SURGE CHAMBER ACCESS VARIES PER DEPTH A OF SURGE CHAMBER 8'' SPACE RUNGS @ 12'' O.C. 6'' 6'' 1'-6'' B VARIES PER DEPTH A OF SURGE CHAMBER SPACE RUNGS @ 12'' O.C. 6'' 6'' 9'' \''~ SS HILTI KB TZ 2 W/ 3|'' MIN. EMBED TYP. (ESR-4266) 4''x4''x{''x2['' LONG STAINLESS STEEL ANGLE STANDARD FLOOR BRACKET TYP. (WELDED INTEGRAL TO LADDER) 9'' 3/4''~ STAINLESS STEEL RUNGS TYP. 3''x 8''x {''x 2['' WIDE STAINLESS STEEL ANGLE STANDARD WALL BRACKET TYP. (WELDED INTEGRAL TO LADDER) \''~ SS HILTI KBTZ 2 W/ 3|'' MIN. EMBED TYP. (ESR-4266) 'KARNEL' CUSTOM STAINLESS STEEL ACCESS LADDER WITH 'BILCO' LU-3 STAINLESS STEEL LADDER SAFETY POST. LADDER TO BE FINISHED WITH EPOXY PAINT, YELLOW IN COLOR A B LADDER WIDTH OVERALL LADDER HEIGHT CONTRACTOR TO VERIFY: 5'-6'' 7\'' 3'-4\'' 1'-4'' 5'-6'' 7\'' 3'-4\'' 1'-4'' PUMP STATION REINF. 2'-3'' 2'-3'' 2'-3'' 2'-3'' UNDERWATER APPROVED '3M' POTTING COMPOUND COVERING CONDUCTOR AND BONDING LUG W/ #8 SOLID INSULATED COPPER WIRE TO POOL REINFORCING
