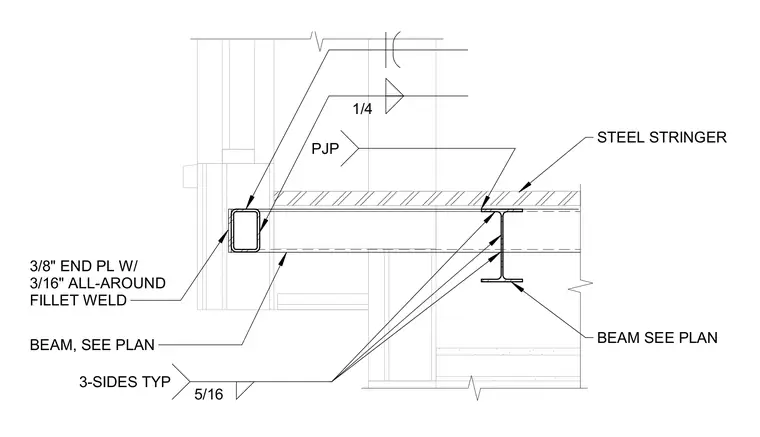

A steel stringer frames into a supporting steel beam sized per plan. The connection utilizes a three-eighths-inch end plate welded to the steel stringer with a three-sixteenths-inch all-around fillet weld. Additional connection details include a partial-joint-penetration weld and a five-sixteenths-inch fillet weld applied along three sides typically.
3/8" END PL W/ 3/16" ALL-AROUND FILLET WELD BEAM, SEE PLAN BEAM SEE PLAN STEEL STRINGER 1/4 5/16 3-SIDES TYP PJP
