A quarter-inch stiffener plate is welded to the opposite side of a beam shear connection web across half the depth of the web. Three-sixteenths-inch fillet welds secure the top and bottom of the stiffener plate to the supporting member. The stiffener plate is omitted when a full-height stiffener plate already exists within six inches of the opposite side of the connection. Beam size and top of steel elevation are determined per the framing plan.

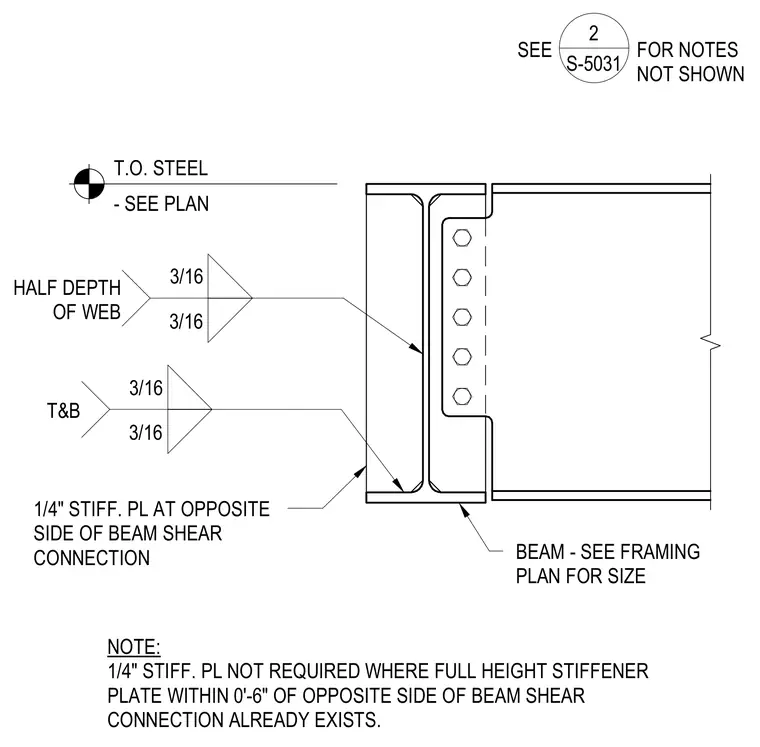

1/4" STIFF. PL AT OPPOSITE SIDE OF BEAM SHEAR CONNECTION 3/16 3/16 HALF DEPTH OF WEB T.O. STEEL - SEE PLAN 3/16 3/16 T&B NOTE: 1/4" STIFF. PL NOT REQUIRED WHERE FULL HEIGHT STIFFENER PLATE WITHIN 0'-6" OF OPPOSITE SIDE OF BEAM SHEAR CONNECTION ALREADY EXISTS. BEAM - SEE FRAMING PLAN FOR SIZE SEE FOR NOTES NOT SHOWN 2 S-5031
