Structural · S-BHSG2

Typical Sfrs Collector Connector

Materials

Concrete Steel Metal (misc.)

Elements

Beams Roofs Decks Insulation Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

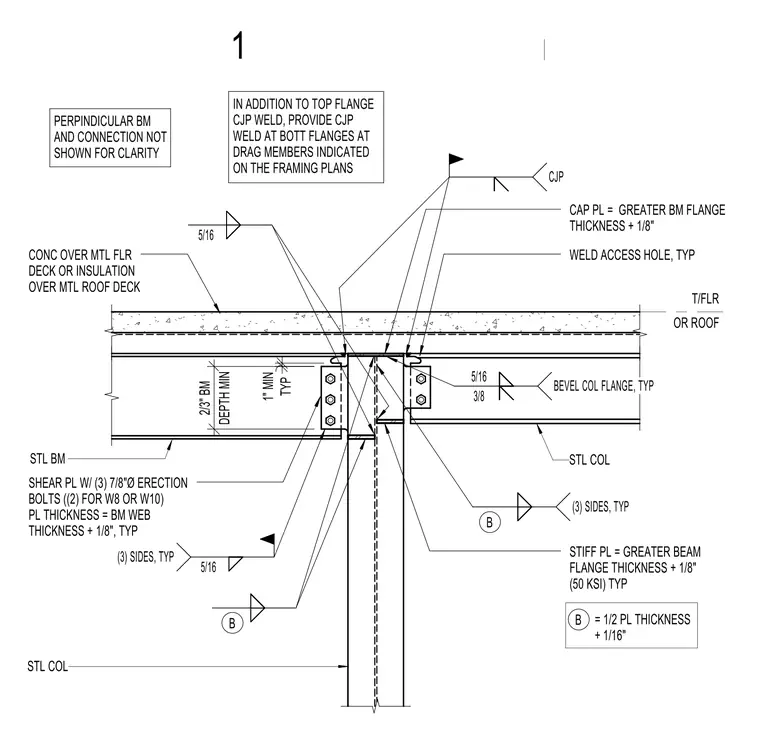

Steel beams frame into a structural steel column with a cap plate sized one-eighth inch greater than the beam flange thickness. A shear plate connects the beam web with three seven-eighths-inch diameter erection bolts, or two bolts for W8 and W10 sections. Stiffener plates fabricated from 50 ksi steel match the beam flange thickness plus one-eighth inch. Complete joint penetration groove welds secure the top and bottom flanges, supplemented by five-sixteenth-inch fillet welds on three sides. Additional complete joint penetration welds are provided at the bottom flanges for designated drag members on the framing plans.
