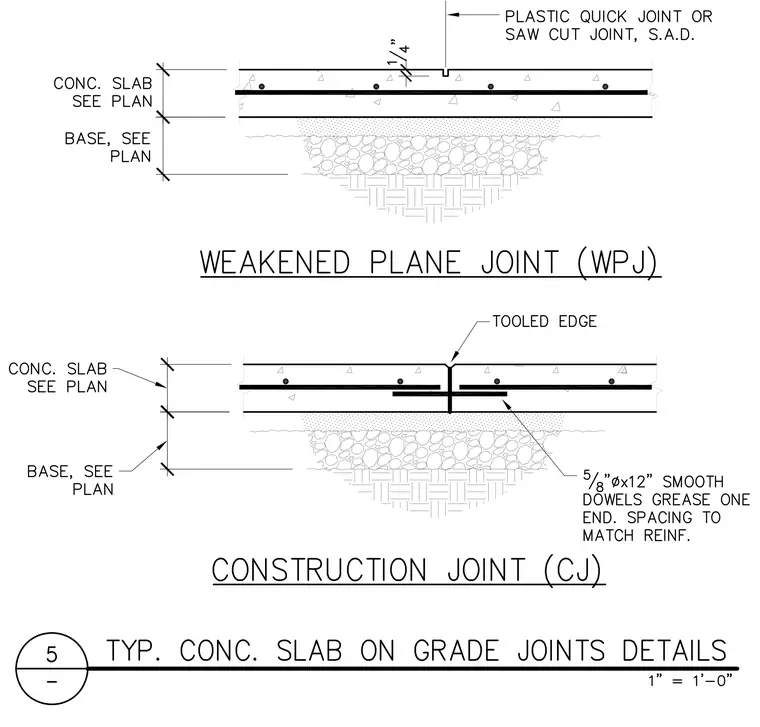

The weakened plane joint features a concrete slab over a base course with a plastic quick joint or saw cut joint measuring one-fourth inch wide. The construction joint incorporates smooth dowels measuring five-eighths inch diameter by twelve inches long, greased on one end, with spacing matching the reinforcement. Both joints rest on a granular base and subbase over compacted soil.
