Elevated Concrete Slab Opening Reinforcement Detail

Materials

Elements

Beams Walls Floors / Slabs Reinforcing Roof / Floor Openings

About this detail

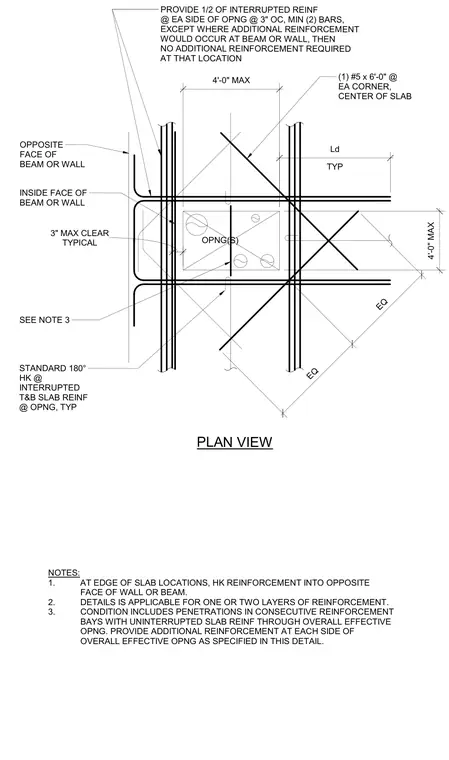

Reinforcement requirements for openings in elevated concrete slabs with interrupted top and bottom slab reinforcing. Half of the interrupted reinforcement is provided at each side of the opening spaced at three inches on center, with a minimum of two bars, unless additional reinforcement already occurs at an adjacent beam or wall. One number five bar by six feet long is placed at each corner in the center of the slab. Standard one hundred eighty-degree hooks are anchored at interrupted top and bottom slab reinforcement at the opening, extending to the opposite face of the beam or wall at edge conditions.
