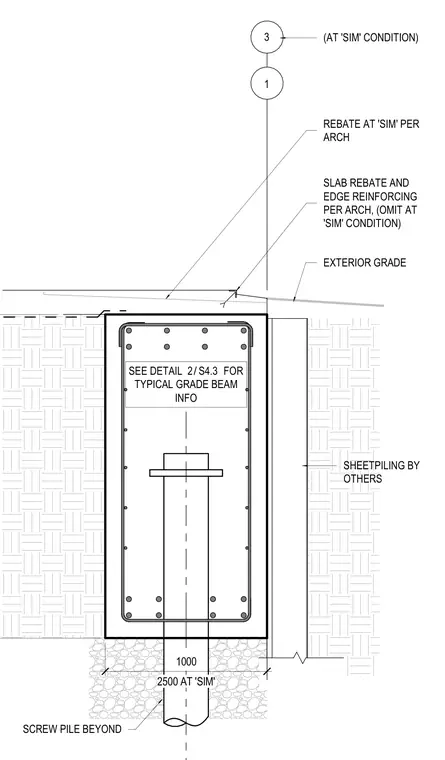

A reinforced concrete grade beam sits atop a screw pile with a spacing of twenty-five hundred millimeters at similar conditions and one thousand millimeters otherwise. Sheet piling installed by others runs adjacent to the exterior grade and foundation wall. The top of the grade beam features a slab rebate and edge reinforcing coordinated per architectural requirements, which are omitted at similar conditions. A reference note directs to detail two on sheet S four point three for typical grade beam information.
2500 AT 'SIM' 1000 1 SCREW PILE BEYOND SLAB REBATE AND EDGE REINFORCING PER ARCH, (OMIT AT 'SIM' CONDITION) SHEETPILING BY OTHERS EXTERIOR GRADE 3 (AT 'SIM' CONDITION) SEE DETAIL FOR TYPICAL GRADE BEAM INFO / 2 S4.3 REBATE AT 'SIM' PER ARCH
