Typical Embedded Wide Flange Into Mat Foundation

Materials

Steel

Elements

Foundations / Footings Anchors / Embeds Connections / Plates

Connections

Shear Tab / Single Plate Gusset Plate Welded Connection Bolted Connection Embed Plate

About this detail

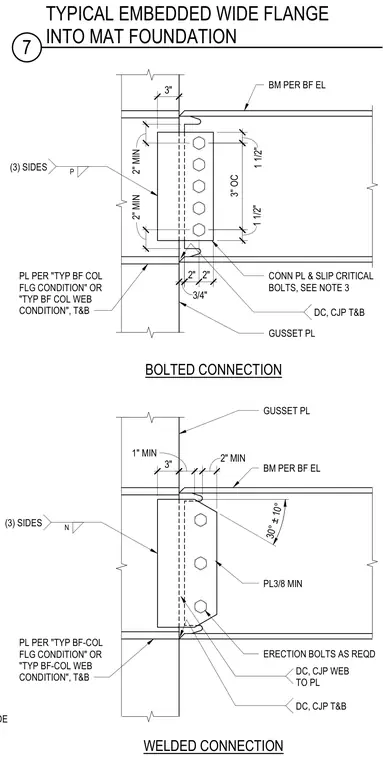

Structural steel beam connections frame into an embedded wide flange shape, divided into bolted and welded configurations. The bolted connection utilizes a connection plate with slip-critical bolts spaced at 3 inches on center with standard edge and end clearances. The welded connection incorporates a three-eighths-inch minimum gusset plate with complete joint penetration welds at the top and bottom flanges and web. Erection bolts are provided as required, with plates sized per standard flange or web conditions.
