Electrical · S-BGKCH

Equipment in Contact with Pool Water

Materials

Elements

Decks Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

About this detail

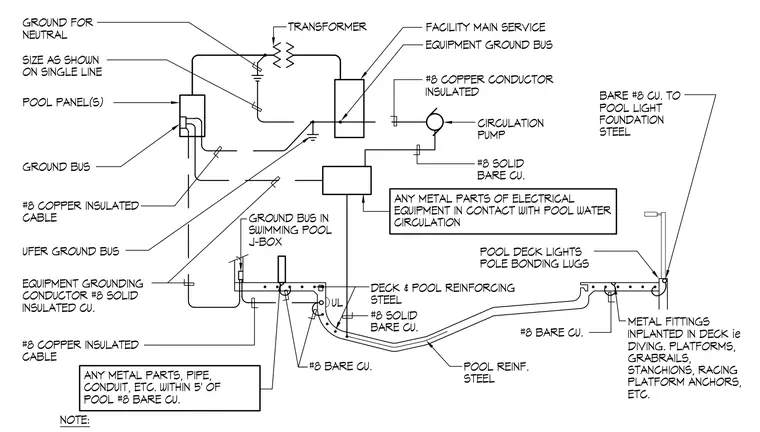

This electrical schematic details the bonding and grounding connections for a swimming pool installation, connecting the facility main service, transformer, and pool panels to peripheral components. A number 8 bare copper conductor bonds the pool reinforcing steel, deck reinforcing, and any metal parts, pipes, or conduits within 5 feet of the pool. Additional number 8 solid bare and insulated copper conductors link the circulation pump, Ufer ground bus, pool junction box, pool deck lights, and metal fittings such as diving platforms, grab rails, stanchions, and racing platform anchors back to the equipment ground bus.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
