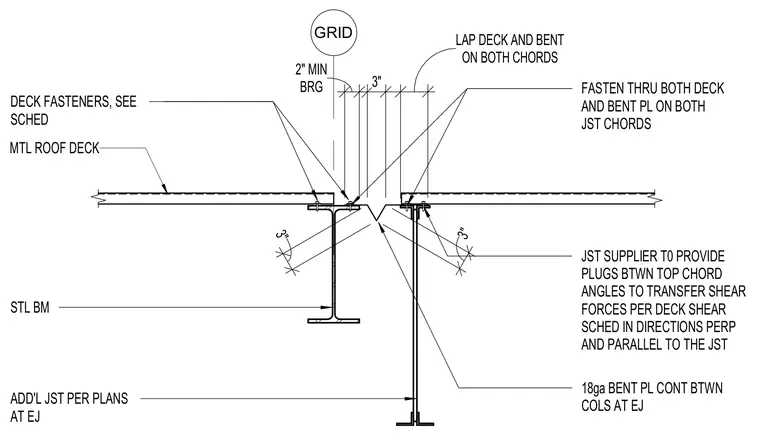

An 18-gauge continuous bent plate spans between columns at the roof expansion joint, flanked by steel joists and a steel beam. The metal roof deck laps over the bent plate on both joist chords, with fasteners extending through both the deck and the bent plate per the deck schedule. The joist supplier provides plugs between the top chord angles to transfer shear forces per the deck shear schedule in directions perpendicular and parallel to the joist. Additional joists are provided per plans at the expansion joint bearing, maintaining a two-inch minimum bearing and specified dimensional clearances.
18ga BENT PL CONT BTWN COLS AT EJ JST SUPPLIER T0 PROVIDE PLUGS BTWN TOP CHORD ANGLES TO TRANSFER SHEAR FORCES PER DECK SHEAR SCHED IN DIRECTIONS PERP AND PARALLEL TO THE JST MTL ROOF DECK GRID STL BM DECK FASTENERS, SEE SCHED FASTEN THRU BOTH DECK AND BENT PL ON BOTH JST CHORDS ADD'L JST PER PLANS AT EJ BRG 2" MIN 3" 3" 3" ON BOTH CHORDS LAP DECK AND BENT
