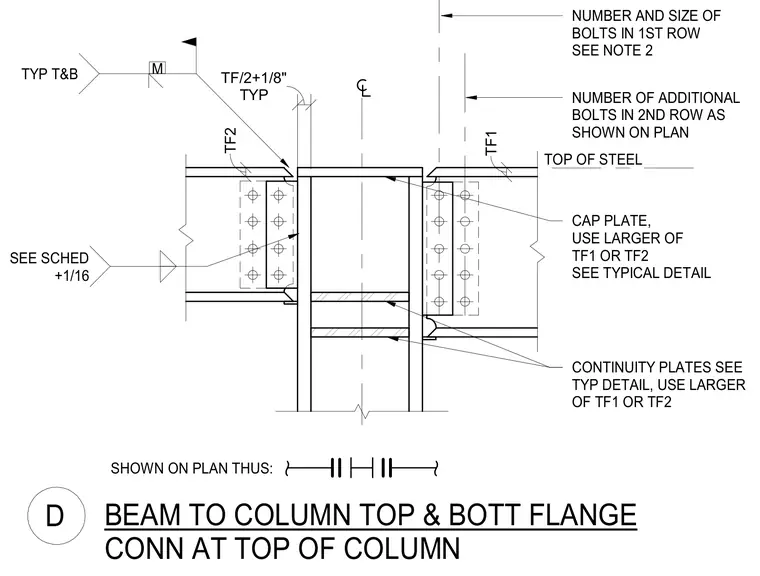

Steel floor beams connect to a structural steel column at the top of the column using top and bottom flange plates bolted to the beam flanges. A cap plate tops the column, sized using the larger of the two flange thicknesses with a clearance offset. Continuity plates align with the beam flanges inside the column web to transfer flange forces. Bolt sizes and counts for both the first row and additional rows are scheduled per plan.
CAP PLATE, USE LARGER OF TF1 OR TF2 SEE TYPICAL DETAIL TOP OF STEEL SEE SCHED +1/16 TYP T&B M TYP TF/2+1/8" TF2 TF1 SHOWN ON PLAN THUS: NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW AS SHOWN ON PLAN BEAM TO COLUMN TOP & BOTT FLANGE CONN AT TOP OF COLUMN D CONTINUITY PLATES SEE TYP DETAIL, USE LARGER OF TF1 OR TF2
