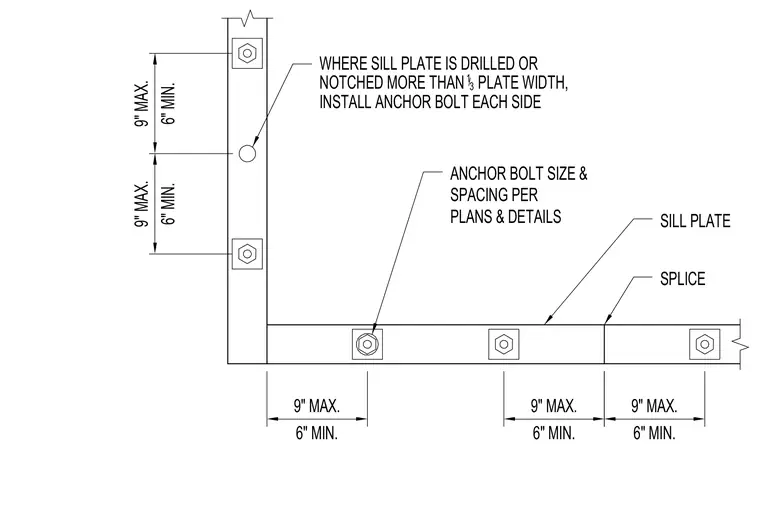

Anchor bolts are spaced at six inches minimum to nine inches maximum along the sill plate. Anchor bolt size and spacing are sized per plans and details. Where the sill plate is drilled or notched more than one-third of the plate width, an anchor bolt is installed on each side of the cut.
9" MAX. 6" MIN. 9" MAX. 6" MIN. 9" MAX. 6" MIN. 9" MAX. 6" MIN. 9" MAX. 6" MIN. ANCHOR BOLT SIZE & SPACING PER PLANS & DETAILS SILL PLATE SPLICE WHERE SILL PLATE IS DRILLED OR NOTCHED MORE THAN 1 / 3 PLATE WIDTH, INSTALL ANCHOR BOLT EACH SIDE
