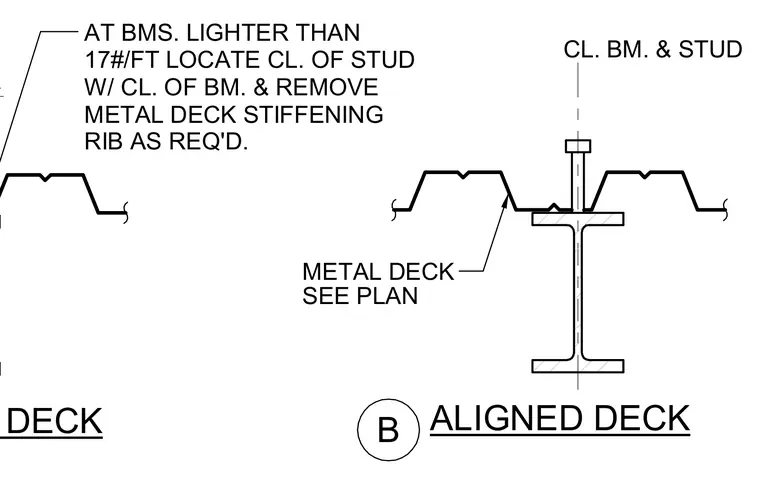

Metal deck bears across a structural steel beam with the centerline of the stud aligned with the centerline of the beam. For beams lighter than seventeen pounds per foot, locate the centerline of the stud with the centerline of the beam and remove metal deck stiffening ribs as required.
RIB AS REQ'D. CL. BM. & STUD 17#/FT LOCATE CL. OF STUD AT BMS. LIGHTER THAN SEE PLAN METAL DECK METAL DECK STIFFENING W/ CL. OF BM. & REMOVE B ALIGNED DECK ALIGNED DECK
