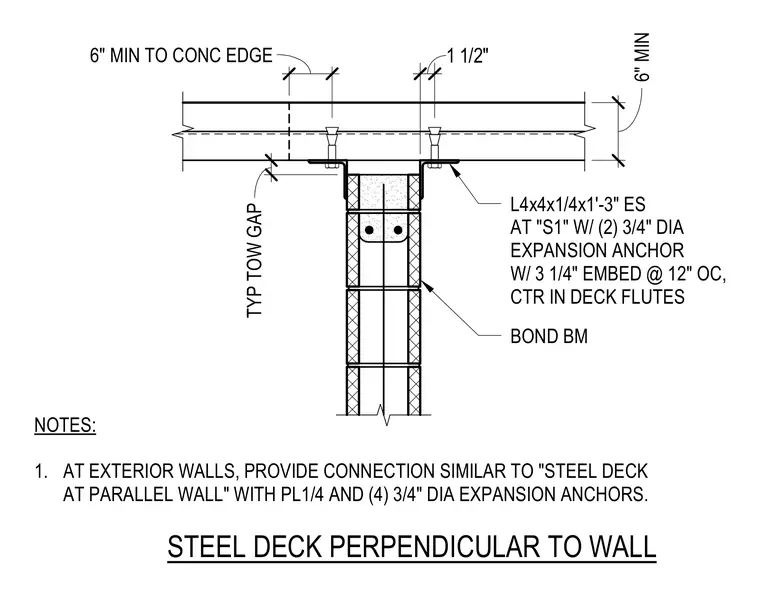

Steel deck frames perpendicular to a masonry wall with a bond beam. An angle measuring four by four by one-quarter inches and one foot three inches long is anchored to the wall with two three-quarter-inch diameter expansion anchors featuring three and one-quarter inches of embedment at twelve inches on center centered in the deck flutes. A typical top of wall gap is maintained, and a six-inch minimum clearance to the concrete edge is required.
L4x4x1/4x1'-3" ES AT "S1" W/ (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC, CTR IN DECK FLUTES BOND BM STEEL DECK PERPENDICULAR TO WALL 1 1/2" TYP TOW GAP 4 1/2" 6" 6" MIN 6" MIN TO CONC EDGE 1 1/2" NOTES: 1. AT EXTERIOR WALLS, PROVIDE CONNECTION SIMILAR TO "STEEL DECK AT PARALLEL WALL" WITH PL1/4 AND (4) 3/4" DIA EXPANSION ANCHORS.
