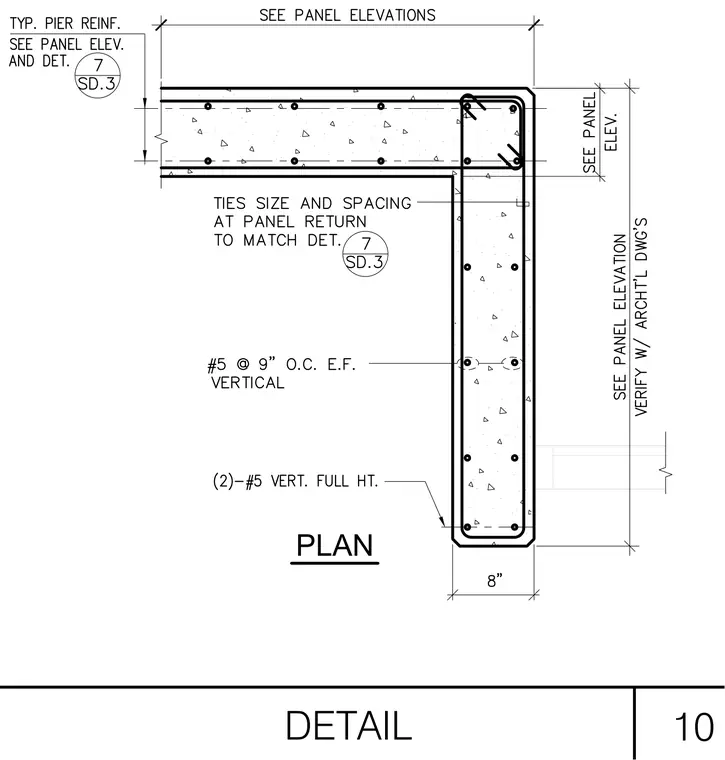

This plan detail shows an eight-inch thick concrete wall corner with vertical reinforcing bars and panel returns. Number five vertical bars are placed at nine inches on center each face. Two number five vertical bars run full height at the return. Ties sizing and spacing at the panel return match detail seven on sheet SD.3.
